NG # 03666-HW-AAE-043
FWS-2365 FlexiWan certified | Desktop Network Appliance with Intel® Atom® Processor C3000 series | AAEON SD-WAN FWS-2365
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing

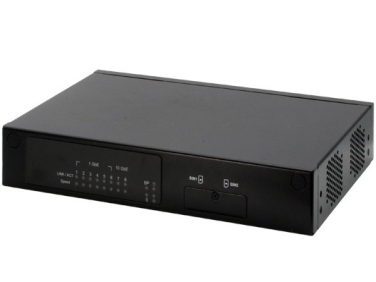

Get A QuoteThe FWS-2365 desktop network appliance is a white box solution designed with a range of powerful features for applications including uCPE and SD-WAN. The system supports 5G connectivity and up to four SFP+ Fiber 10 Gbps ports and a range of powerful tools and function to accelerate deployment of SD-security, QoS and other SDN/NFV applications.
| SYSTEM | |
| FORM FACTOR | Desktop Network Appliance |
| PROCESSOR | Intel Atom® Processor C3558 |
| CHIPSET | SoC |
| SYSTEM MEMORY | DDR4 SODIMM ECC x 2, up to 64GB |
| NETWORK | |
| ETHERNET | Intel® Ethernet Controller I210, Gigabit Ethernet x 6 (2 ports co-lay SFP) Intel® Ethernet Controller I210, SFP x 1 (4 core processors only support 2 SFP ports) |
| BYPASS | Supports 1 pairs on LAN 3-4 |
| STORAGE | |
| HDD | SATA III port x 2, 2.5" HDD/SSD up to 2 |
| CF/CFAST/MSATA | On board 16GB eMMC, up to 128GB optional mSATA slot x 1 (co-lay with M.2 slot) |
| INTERNAL/ EXPANSION INTERFACE | |
| PCIE SLOT | — |
| MINI-PCIE SLOT | Mini-card slot x 1 (Half-size, PCIe) Mini-card slot x 1 (Full-size, PCIe + USB2.0) with SIM slot M.2 B key 3052 x 1 (USB3.0) with SIM slot |
| KB MOUSE | Reserved pin-header |
| USB | USB 3.0 x 2 (1 Port only support USB2.0 signal) |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| SOFTWARE BUTTON | GPIO programmable push button x 1 |
| TPM | TPM v2.0 9665 |
| GPIO | 4 bits input/ 4 bits output |
| FAN | System Fan x 1 |
| MTBF (HOURS) | TBD |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 12V DC Power in connector 4 Cores: 40W Power Adapter 8 Cores and above: 60W Power Adapter |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C ) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 g rms/ 5 ~ 500Hz / operation (2.5" HDD) 1.5 g rms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
| DIMENSION (W X D X H) | 260mm x 178mm x 44mm (W x D x H) |
| I/O | |
| FRONT PANEL | Power LED x 1 Status LED x 1 Storage Active LED x 1 Bypass LED x 1 Ethernet LED x 20 Antenna Hole x 2 Accessible SIM slot x 2 |
| REAR PANEL | USB 3.0 Port x 2 RJ-45 Port x 6 SFP+ Port x 2 RJ-45 Console x 1 12V DC Power Input x 1 Software Reset Button x 1 Power Button x 1 Antenna Hole x 4 |
