ABB Operator Panel

  • NG # 02773-HW-ABB-021

  • MF # ACS-CP-A

Manufactured By :
ABB
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

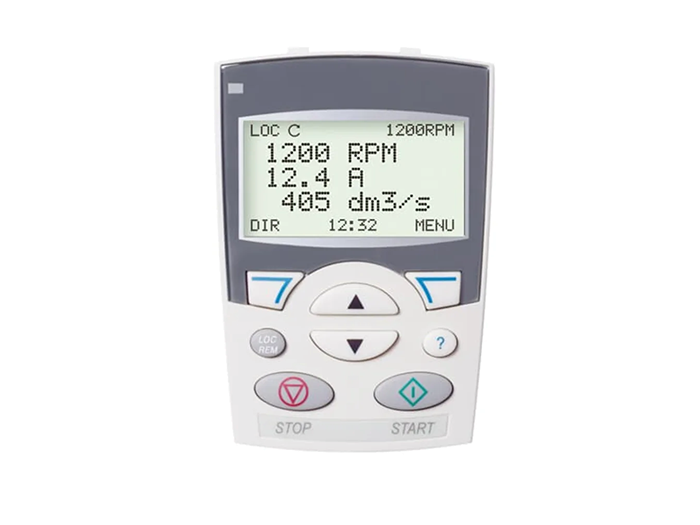

ACS 350 & 550 Assistant Control Panel


The assistant control panel features various assistants and a built in help function to guide the user. It includes a real time clock, which can be used as start/ stop. The control panel can be used for copying parameters for back up or downloading to another drive. A large graphical display and softkeys make it extremely easy to navigate.


Alphanumeric and graphical backlit display
Intuitive “mobile phone like” use
Allows parameters to be displayed and set
Start-up, maintenance and diagnostic assistants
Control of the drive with start, stop, forward and reverse keys
2 ’soft keys’
Help button that gives information from the manual
Gives suggestions to resolve a trip if one occurs
Upload and download capabilities to copy between drives
Real time clock and calendar
Fault logger with time and date stamping of 7 signals
Changed parameters list
I/O connection list
14 languages supported at the same time

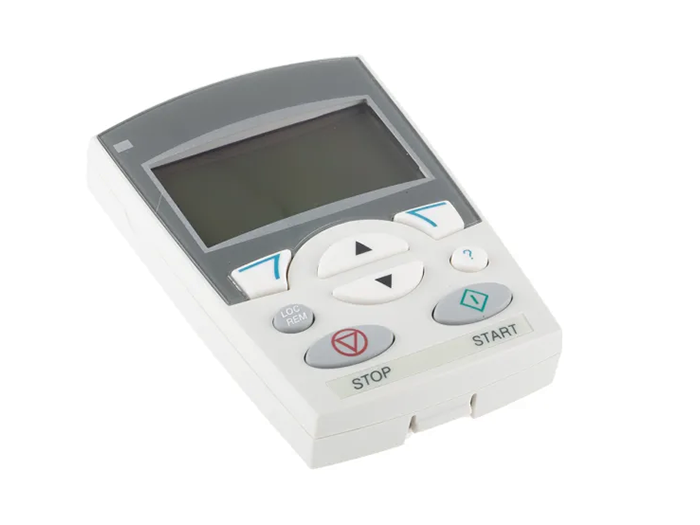

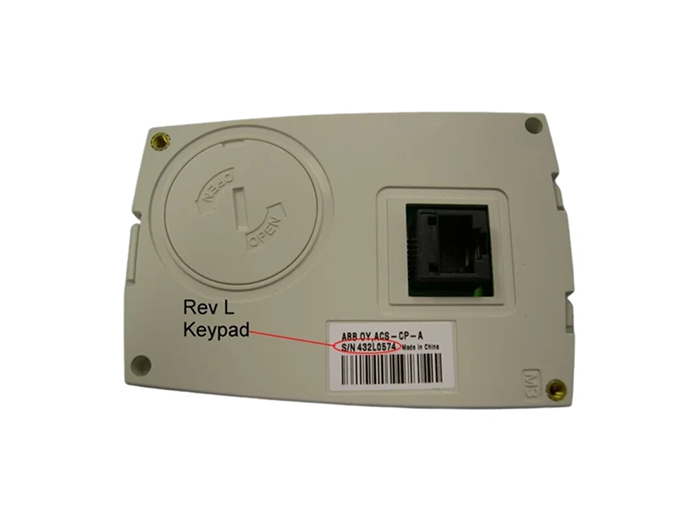

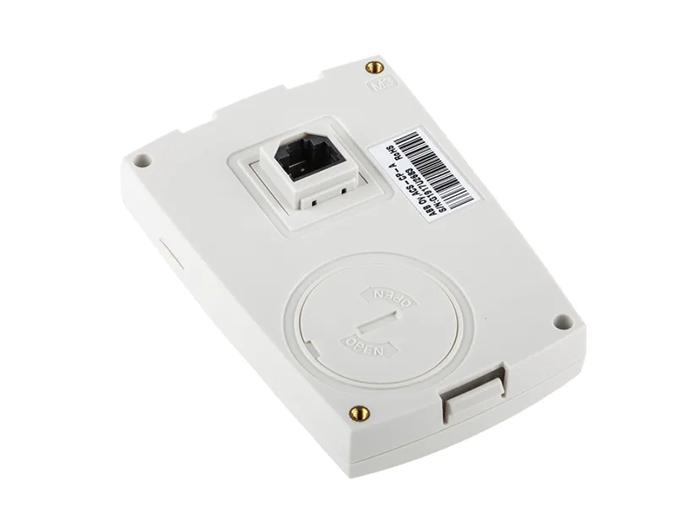

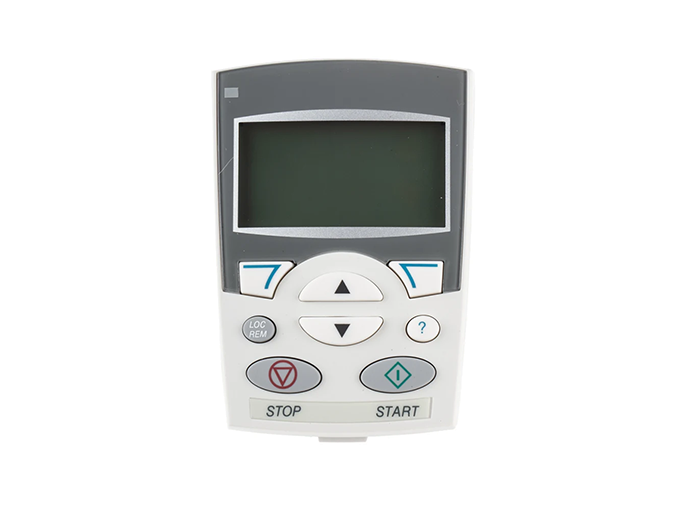

ABB Operator Panel, 8 Button Interface, M3 Screw Ports - ACS-CP-A


Control your standard drive with this operator panel from ABB. This unit is compatible with drives from the ACS310, ACS350, ACS355 and ACS550 series and can control multiple units at the same time. You can use it to copy parameter data from one drive to another or to back up a drive’s memory. Its large display is easy to read and the interface is simple and intuitive to use, with a built-in help button for easy access to assistance.


Features & Benefits


• Two soft keys for programming instant access to your most needed features
• Real-time clock to log faults and activate the device at a specific time
• Easy to set up with a new drive for quick device commissioning
• Provides fault diagnosis to heighten safety
• Multi-lingual interface makes operation more accessible


Applications


• Food processing machinery
• Conveyors
• Material handling
• Chemical plants


How do I navigate around this operator panel's features?


The device is designed to be used in a way you might recognise from using a mobile phone. Its backlit screen displays alphanumerical and graphical information, which you can scroll through using the grippy 'up' and 'down' buttons.



ABB - ACS Range

Specification

Phase
Three Phase
Automation Grade
Automatic
Power
Control board supply
Brand
ABB
Body Material
Plastic
IP Rating
IP20
Usage/Application
For drives
Minimum Order Quantity
1
