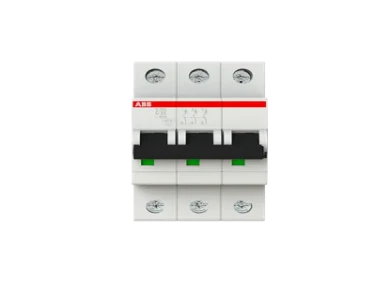

ABB System Pro M Compact S200 MCB, 3P, 25A Curve C, 400V AC, 10 kA Breaking Capacity

  • NG # 03909-HW-ABB-090

  • MF # 2CDS253001R0254 S203-C25

Manufactured By :
ABB
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

ABB S200 Series MCB, 25A Current Rating, 10kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS253001R0254 S203-C25


This miniature circuit breaker is essential for electrical protection in commercial and industrial environments. As a vital element in electrical distribution systems, it enhances safety by preventing overloads and short circuits. With a current rating of 25A and a breaking capacity of 10kA, it effectively responds to fault conditions, preserving the integrity of electrical installations.


Features & Benefits


• Provides short circuit protection to safeguard circuits
• Compact design facilitates installation in confined spaces
• 3P configuration enables protection for three-phase circuits
• Thermal electromechanical tripping mechanism ensures dependable operation
• Suitable for DIN rail mounting to optimise space usage
• Designed for disassembly to support sustainability and recycling


Applications


• Applicable in commercial electrical installations for added safety
• Ideal for protecting industrial machinery against electrical faults
• Effective for integration in automation and control systems
• Suitable for use within distribution boards that require compact protection


What type of mounting does this device require?


It is designed for DIN rail mounting, allowing straightforward installation in standard electrical panels.


How does the tripping mechanism operate in fault conditions?


The thermal electromechanical tripping mechanism activates during overloads or short circuits, disconnecting the supply to prevent damage.


Can it be integrated with existing electrical distribution systems?


Yes, it can be incorporated into various systems, making it suitable for retrofitting within existing installations.


What maintenance is required for optimal performance?


Regular visual inspections are recommended to ensure all connections are secure and check for any visible damage.


Is it suitable for high-voltage applications?


It is rated for 400V operation, making it applicable for a range of high-voltage applications within its specifications.

Specification

Brand

ABB

Number of Poles

3

Current Rating

25A

Tripping Characteristics

Type C

Rated AC Voltage

400V

Breaking Capacity at Maximum Voltage Rating

10 kA

Range

System Pro M Compact

Series

S200

Circuit Breaker Type

MCB

Length

88mm

Width

52.5mm

Mounting Style

DIN Rail Mount

Depth

69mm

Model Number

S203-C25

Better World Claim

Designed for disassembly

Better World Product

Yes

Reset Actuator Type

Lever

Special Features

Short Circuit Protection

Application

Commercial, Industrial

Terminal Contact Type

Screw
