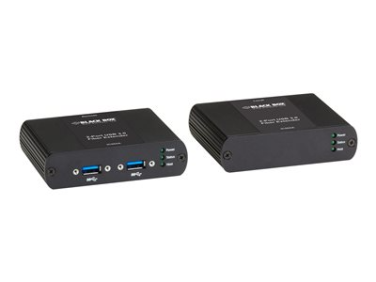

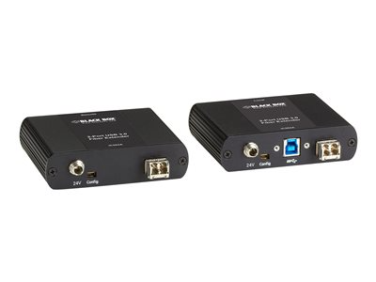

Black Box USB 3.0 Ultimate Fiber Extender - USB extender

  • NG # 03507-HW-BLACK-040

  • MF # IC502A-R2

Manufactured By :
Black Box
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Extend a SuperSpeed USB 3.0 signal beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over Multimode fiber to two peripherals. Extend a SuperSpeed USB 3.0 signal beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over Multimode fiber to two peripherals. Compatible with the USB 3.0 or"SuperSpeed USB" standard the extender boasts speeds up to 5 Gbps about ten times that of USB 2.0. This way you can extend your USB bus connections to newer USB 3.0 devices that use higher bandwidths and require bidirectional asynchronous full-duplex data transfer. Plus it supplies more power than USB 2.0 to the remote devices. With the higher data-transfer rate and power the extender is ideal for connecting industrial USB 3.0 machine vision cameras particularly those with high power sensors. It's also great for post-production video editing and broadcast applications with USB 3.0 peripherals and external USB CD/DVD drives in different rooms.

Specification

General
Device Type
USB extender
Form Factor
External
Networking
Connectivity Technology
Wired
Data Transfer Rate
5 Gbps
Max Transfer Distance
328 ft
Status Indicators
Power, link OK, host
Compliant Standards
USB 1.1, USB 2.0, USB 3.0
Expansion / Connectivity
Interfaces
2 x USB 3.0 - Type A
Miscellaneous
Cables Included
1 x SuperSpeed USB cable
Compliant Standards
Plug and Play, RoHS
Power
Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Software / System Requirements
OS Required
Linux, Apple MacOS X, Microsoft Windows
Dimensions & Weight
Width
3.9 in
Depth
3 in
Height
1 in
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
