Ecom Pad-Ex® 01 - ATEX Mobile Tablet (Zone 2) (Discontinued)

  • NG # 00424-HW-ECOM-025

Pad-Ex® 01 combines robust durability with adherence to environmental standards, featuring support for 5th generation Intel® Core™ i5/i7 processors. Additionally, it boasts a battery life of up to 7 hours and compatibility with Windows® 10/Pro.

Manufactured By :
ecom
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Rugged revolution thin, light and strong.

Supporting such an ultra compact form factor, Pad-Ex® 01 manages to fully meet IP65, 4 feet drop and MIL-STD 81 OG for vibration. With its additional display protection it offers complete protection against the harsh environment field workers face and minimizes burden on their bodies during long hours of work.

Connectivity - fast and flexible.

As private 4G / LTE wireless connectivity is increasingly adopted within hazardous areas, Pad-Ex 01 ensures access is fast and seamless – enabling users to quickly access the information needed to perform the task at hand. For sites without WiFi or 4G access in the field, Pad-Ex® 01 provides up to 256GB of SSD memory to meet your on-board data storage needs, backed by an i5, or optional i7 processor to ensure your applications run as smoothly and efficiently as possible.

Central to ecom's Mobile Worker concept, the latest Bluetooth standards are also supported by Pad-Ex® 01, allowing realtime connectivity to both Bluetooth SmartReady Low Energy 4.0 (BLE) devices as well as older legacy Bluetooth devices. This allows the mobile worker to benefit from expanded Pad-Ex® 01 capabilities such as data collection and measuring/monitoring devices, headsets, AutoID, and Bluetooth Beacons for localization.

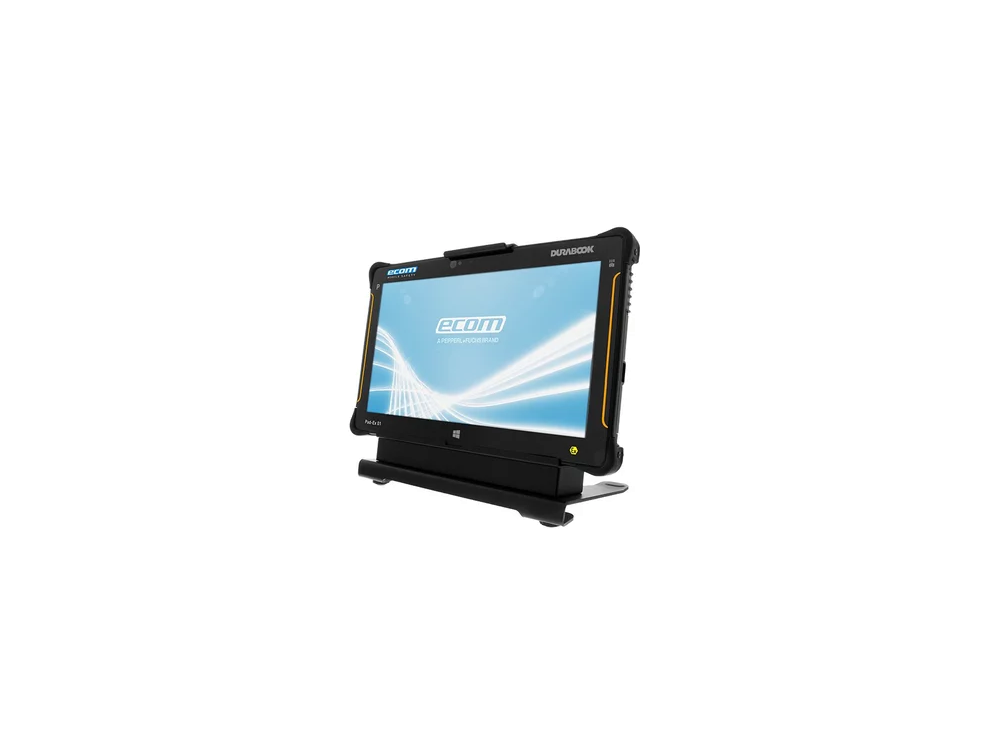

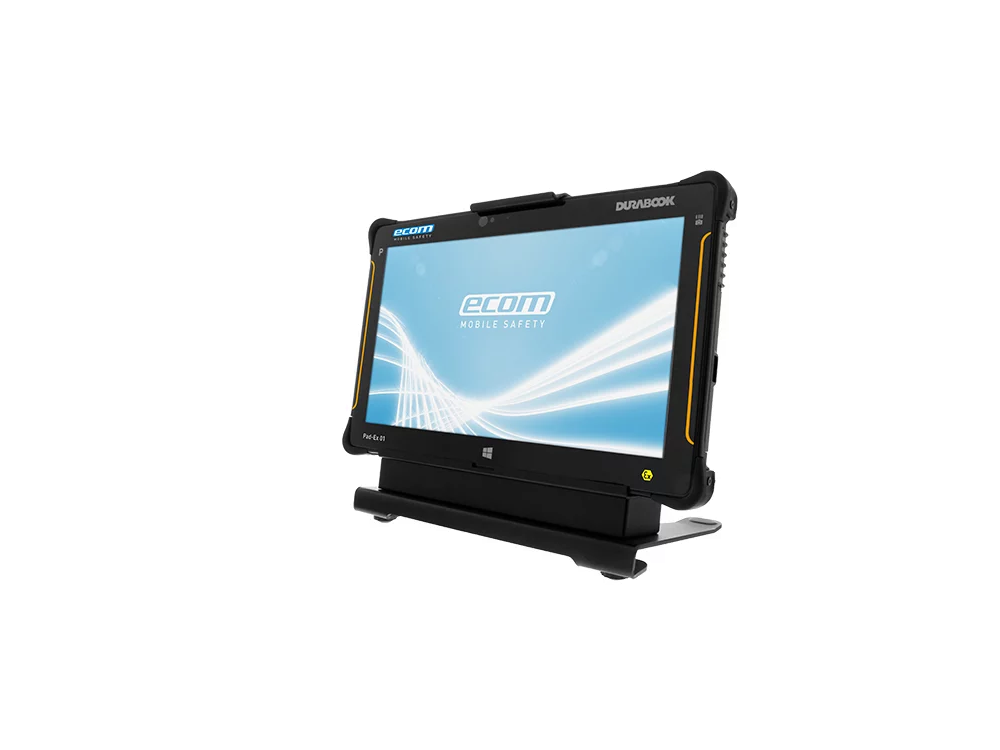

Once your work in the field is done, Pad-Ex® 01 transforms into your PC via the optional desktop docking interface, allowing seamless integration into your office and corporate networks

Specification

Specification

IP65 DROP

MIL-STD 81O G 516.6 Procedure IV
6 drops from 4 feet height to plywood over concrete

VIBRATION

MIL-STD 810G 514.6 Procedure I Cat. 24,
Fig. 514.6E-1

ENVIRONMENT TEMPERATURE

Operating: -10°C - 55°C (14°F - 131°F)

HUMIDITY

Operating: 5% - 95%

ALTITUDE

Operating: 15,000 feet



TECHNICAL FEATURES

OPERATING SYSTEM Full Windows 7 Pro / Windows 8.1 Pro / Windows 10 64 Bit / Windows 10 Pro
CPU Intel Broadwell i5 series / i7 optional
MEMORY One DDR3L socket for 4GB / 8GB
STORAGE M2-SATA SSD 128GB / 256GB
DISPLAY
  • 11.6" HD (1366 x 768) LCD Panel
  • Capacitive Multi-Touch
  • Optical Bonding Sunlight Readable LCD 730 nits
  • Ambient Light Sensor
SENSOR Built-in G sensor, Gyroscope, and E-Compass
AUDIO
  • Speaker x1 / 70dB
  • Microphone x1
CAMERA
  • 2MP Front Facing Camera
  • 5MP Rear Camera with auto focus and 1500mcd LED flashlight
  • support Geo Tagging (Optional)
COMMUNICATION
  • 4G LTE (Optional)
  • GPS (Optional)
  • Intel Wireless AC7260 802.11 a/b/g/n/ac Bluetooth 4.0 Class 1
DATA COLLECTION
  • 1D / 2D Barcode Scanner (Optional)
VO PORTS
  • Two USB 3.0
  • One Headphone out / Mic-in jack
  • One Docking Connector
  • One Expansion Connector for Expansion Modules
  • Two RF pass-through connectors for WWAN & GPS
EXPANSION SLOTS
  • One Micro SD Card slot support SDHC & SDXC
  • One SIM Card
BUTTON
  • Power
  • Volume
  • Windows Touch button
  • Barcode / Camera Touch Button
  • Programmable Touch Button
BATTERY One 4130 mAh Li-Polymer battery pack: 7hrs
7800 mAh (Optional) Li-Polymer battery pack: 14hrs
AC ADAPTOR 19V, 3.42A; 65W

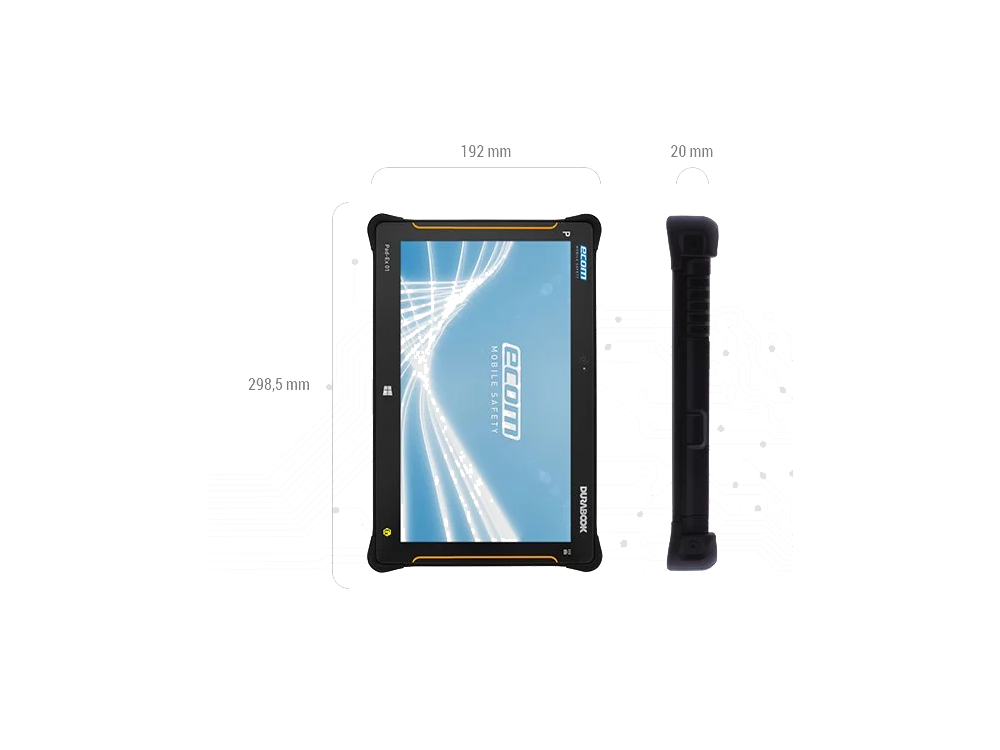

DIMENSION 298.5mm x 192mm x 20mm (11.75" x 7.55" x 0.78")
WEIGHT 1.2 Kg (~42.32 oz)



CATALOGS

Data Sheet
