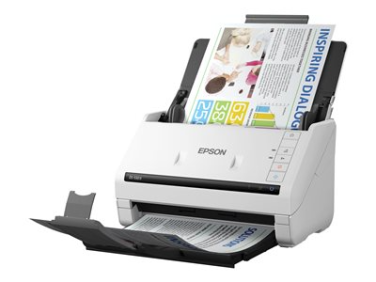

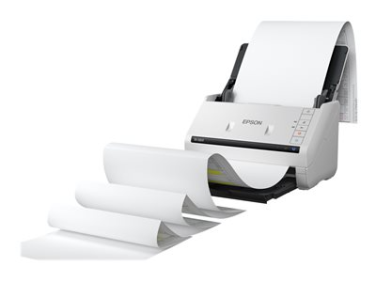

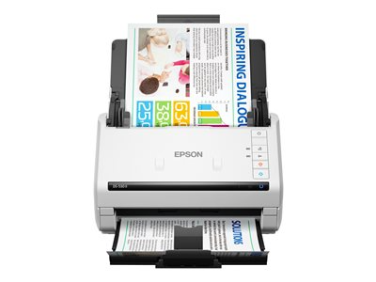

Epson DS-530 II - document scanner - desktop - USB 3.0

  • NG # 03408-HW-Epson-002

  • MF # B11B261202

Epson DS-530 II - Document scanner - Contact Image Sensor (CIS) - Duplex - 8.5 in x 240 in - 600 dpi x 600 dpi - up to 35 ppm (mono) / up to 35 ppm (color) - ADF (50 sheets) - up to 4000 scans per day - USB 3.0


Manufactured By :
Epson
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The DS-530 II color duplex document scanner is the smart choice for business document management, offering fast, efficient performance. Featuring speeds up to 35 ppm/70 ipm, this powerful, compact performer offers a peak daily duty cycle of up to 5,500 sheets and includes TWAIN and ISIS drivers for seamless integration with most existing document management systems. Advanced paper feed technologies such as blank page removal, auto rotation, auto cropping, Dirt Detection and Paper Protection help enhance productivity, while a 50-page Auto Document Feeder saves time.

Specification

General
Type
Document scanner - desktop
Interface Type
USB 3.0
Max Supported Document Size
8.5 in x 240 in
Scanner
Input Type
Color
Grayscale Depth
30-bit color
Grayscale Depth (External)
24-bit (16.7 million colors)
Optical Resolution
600 dpi x 600 dpi
Interpolated Resolution
1200 dpi x 1200 dpi
Scan Mode
Single-pass
Automatic Duplexing
Yes
Scanning Sensor Type
Contact Image Sensor (CIS)
Lamp / Light Source Type
3-color RGB LED
Max Document Scan Speed B/W
35 ppm
Max Document Scan Speed Color
35 ppm
Duty Cycle
5500 scans per day
Scanner Speed Details
35 ppm - black&white - 300 dpi ¦ 35 ppm - color - 300 dpi ¦ 70 ipm - duplex
Compliant Standards
TWAIN, ISIS
Media Handling
Supported Document Type
Plain paper, plastic card
Document Feeder Type
Automatic
Feeder Capacity
50 sheets
Expansion / Connectivity
Interfaces Details
USB 3.0
Miscellaneous
Cables Included
1 x USB cable
Compliant Standards
RoHS
Power
Power Device
External power adapter
Power Consumption Operational (Standby)
11 Watt
Power Consumption Stand by
5.4 Watt
Power Consumption Sleep
1 Watt
Software / System Requirements
Software Included
EPSON Document Capture, EPSON Scan 2, OpenText Captiva ISIS
OS Required
Microsoft Windows 7 / 8 / 8.1 / 10, Apple MacOS X 10.10 - 10.15
Dimensions & Weight
Width
6.6 in
Depth
11.6 in
Height
6.9 in
Weight
8.16 lbs
Dimensions & Weight (Shipping)
Shipping Width
9.9 in
Shipping Depth
14.4 in
Shipping Height
11.5 in
Shipping Weight
10.58 lbs
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
41 °F
Max Operating Temperature
95 °F
Humidity Range Operating
10 - 80% (non-condensing)
