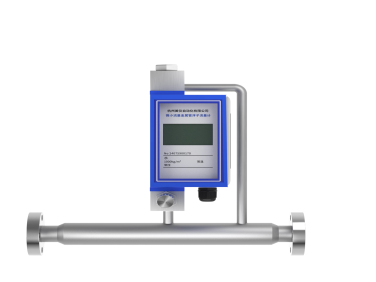

FRM200 micro metal tube float flowmeter

  • NG # 03808-HW-SUPMEA-023

The FRM200 Micro Metal Tube Float Flow Meter is designed for precise measurement of small gas and liquid flows, offering high resistance to temperature, pressure, and corrosion. Ideal for applications like gas chromatography, pharmaceuticals, and nuclear power, it features an all-metal construction, buoyancy-based measurement, and a magnetic coupling system.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

It includes a needle valve for flow adjustment and supports various process connections, indicators with optional LCD display, and outputs like 4-20mA with alarms for enhanced monitoring. Accurate and reliable, it ensures stable performance in demanding environments.

Specification

Series NumberFRM200 (Micro metal tube float flowmeter)
Measurement MediumLiquid (1-150L/h) | Gas (16-4800L/h)
Process ConnectionNPT1/4 inner thread | HG/T20592 PN40 DN15 flange connection | ISO2852 50.5 card sleeve | Card sleeves (6mm, 8mm, 10mm, 12mm)
Meter Tube & Float Material316LSS (Other options available)
Meter Tube StructureBottom inlet/top outlet | Right inlet/left outlet | Left inlet/right outlet | Side inlet/side outlet
Accuracy2.5 grade (Other options available)
Indicator TypeAluminum alloy square housing with pointer or LCD display
Output & Power SupplyOptions include two-wire system 4-20mA, HART, RS485, and more
AlarmSPDT dry contact, NAMUR switch for upper/lower limit alarms
Flow Control ValveInlet or outlet needle valve options available
Constant Flow Valve TypeLow-pressure and high-pressure inlet/outlet pressure variation types
Electrical Interface & Protection ClassM16×1.5 cable gland, IP67 protection
