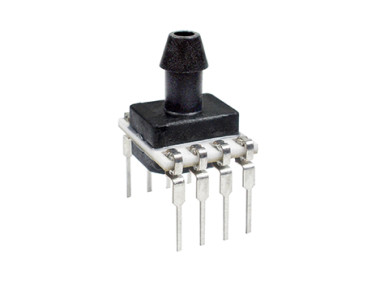

Honeywell Absolute Pressure Sensor, 103kPa Operating Max, PCB Mount, 8-Pin, 207kPa Overload Max, DIP

NG # 03084-HW-HONEYWELL-332
MF # SSCDANV015PAAA5

Manufactured By :

Honeywell

Ask For Price

Stock

Need Help Ordering?

Call +88 01714243446

Custom Pricing

Get A Quote

Ask For Price

Need Help Ordering?

Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Honeywell TruStability Standard Accuracy Silicon Ceramic (SSC) Series is a piezoresistive silicon pressure sensor offering a ratio metric analog or digital output for reading pressure over the specified full-scale pressure span and temperature range. The SSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and nonlinearity using an onboard Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital.

Stability and reliability
Industry-leading accuracy of ±0.25 %FSS BFSL
Port and housing options simplify integration
Wide pressure range, from ±1.6 mbar to ±10 bar | ±160 Pa to ±1 MPa | ±0.5 inH2O to ±150 psi
Small package size
Extremely low power consumption

Specification

Maximum Overload Pressure	207kPa
Mounting Type	PCB Mount
Package Type	DIP
Pin Count	8
Maximum Operating Pressure	103kPa
