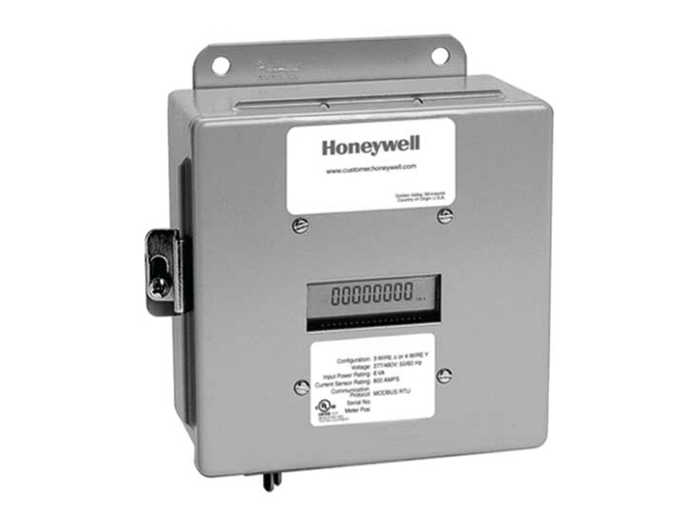

Honeywell E-Mon™ Class 3200 RS485 Smart Meter

  • NG # 01168-HW-HNWEL-194

Smart meters equipped with a single RS485 protocol capability, supporting EZ 7, Modbus RTU, or BACnet MS/TP.

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Provides advanced display of energy data including kWh, kWh/Demand with peak date & time, power factor per phase, real-time load in kW and amps & volts per phase. Meter allows for on-board set up of meter date/time and ID code set up for communication options.

Specification

  • Advanced 4-line display
  • Onboard installation diagnostics and verification system
  • RS-485 protocol options include E-Mon Energy EZ7 (standard), Modbus RTU, or BACnet MS/TP
  • Records kWh and kVARh delivered, kWh & kVARh received
  • The meter is designed for use on both 3-phase, 3-wire (delta) and 3-phase, 4-wire (wye) circuits
  • 0-2 volt output split-core current sensors allow for enhanced safety and accurate remote mounting of sensors up to 500 feet from the meter without power interruption (Optional solid-core current sensors available in 100 & 200 amp)
  • Built-in RS-485 communications capability supports up to 52 Din-Mon D2 & D5, Cass 3200, 3400, 5000 meters, and/or IDR interval recorders (or combinations not to exceed 52 devices per channel)
  • Cabling can be either daisy-chain or star configuration, 3-conductor, 18-22 AWG, up to 4,000 feet cable total per channel
  • Compatible with E-Mon Energy software via EZ7 protocol for automatic meter reading, billing, and profiling of interval energy data. ​
  • Outdoor NEMA 4X polycarbonate enclosure (standard) ​or industrial-grade JIC steel enclosure (available)​
