RFQ

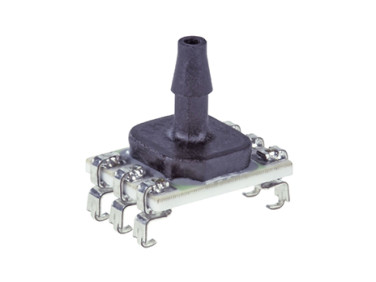

Honeywell Gauge Pressure Sensor, 207kPa Operating Max, PCB Mount, 6-Pin, 1724kPa Overload Max, SMT

  • NG # 03075-HW-HONEYWELL-323

  • MF # ABPMANV030PG2A3

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Honeywell ABP Series are piezo resistive silicon pressure sensors offering a ratio metric analogue or digital output for reading pressure over the specified full scale pressure span and temperature range. They are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors (which include nonlinearity, repeatability and hysteresis) using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analogue and 2 kHz for digital. All products are designed and manufactured according to ISO 9001 standards


Measures gage and differential pressures

Total Error Band (see Figure 1): ±1.5 %FSS

Liquid media option: Allows for wet/wet operation on dual ported devices

Industry-leading long-term stability: ±0.25 %FSS

Industry-leading accuracy: ±0.25 %FSS BFSL

As small as 8 mm x 7 mm

Specification

Maximum Overload Pressure1724kPa
Mounting TypePCB Mount
Package TypeSMT
Pin Count6
Maximum Operating Pressure207kPa
