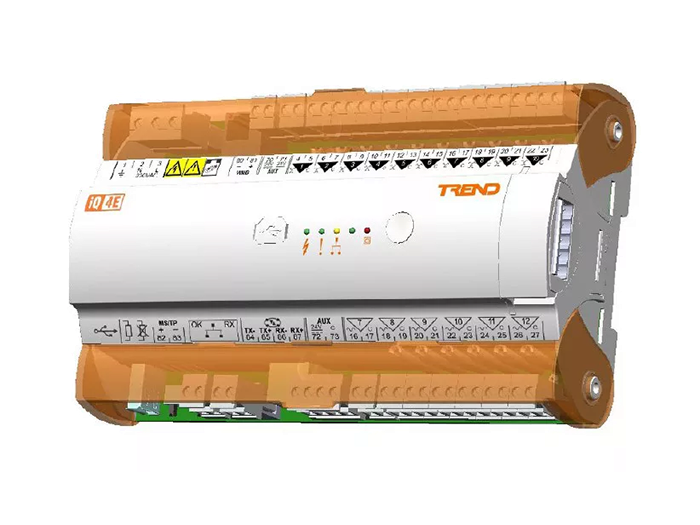

Honeywell IQ4E Controller

  • NG # 00932-HW-HNWEL-052

The IQ™4E controller has 10 universal inputs and 6 analogue voltage outputs and is expandable up to 192 points (depending on the controller variant) by adding I/O modules.

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The IQ™4E controller has 10 universal inputs and 6 analogue voltage outputs and is expandable up to 192 points (depending on the controller variant) by adding I/O modules.

Specification

  • 16 onboard I/O channels - 10 inputs and 6 outputs
  • I/O bus supports up to a total of 192 I/O channels (depending on the controller variant) using additional I/O modules
  • I/O bus length up to 300 m (328 yards)
  • Ethernet 10/100 Mbps main network with TCP/IP protocol
  • Trend current loop LAN option
  • Embedded XML Web Services as standard
  • BACnet over IP (certified BACnet Building Controller (B-BC))
  • Wallbus for connection of room displays
  • RS232 and USB local supervisor/engineering ports
  • Automatic time synchronisation and daylight saving via SNTP
  • DIN rail mounting, DIN 19 size 2 standard enclosure
  • Optional interfacing to Serial/IP MODBUS, and M-Bus devices.
  • 230 Vac, 24 Vac or 48 Vdc input power supply options

CATALOGS

IQ4E Controller Data Sheet
