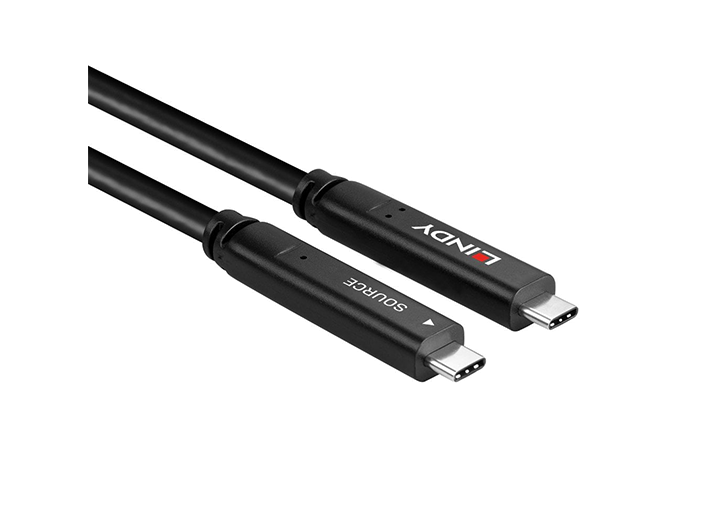

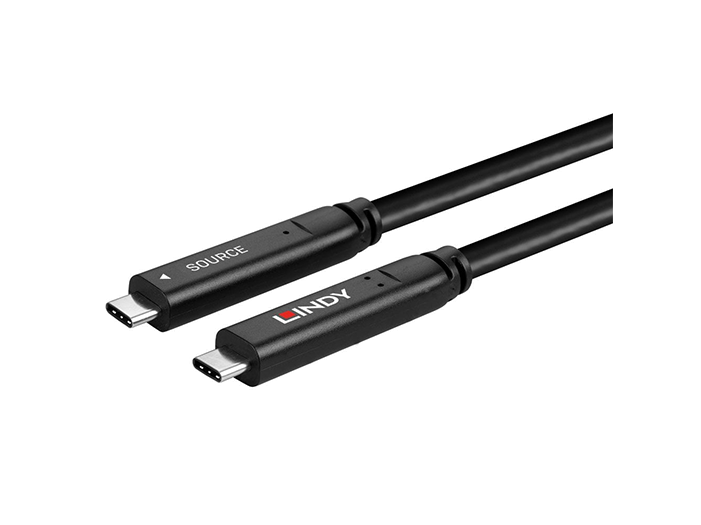

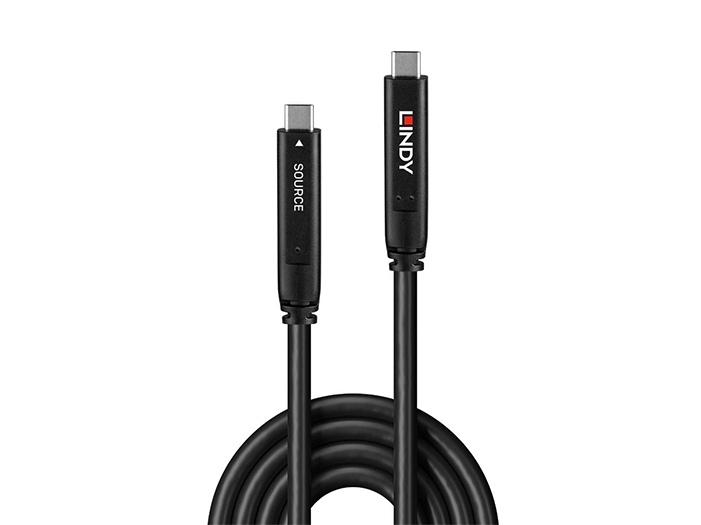

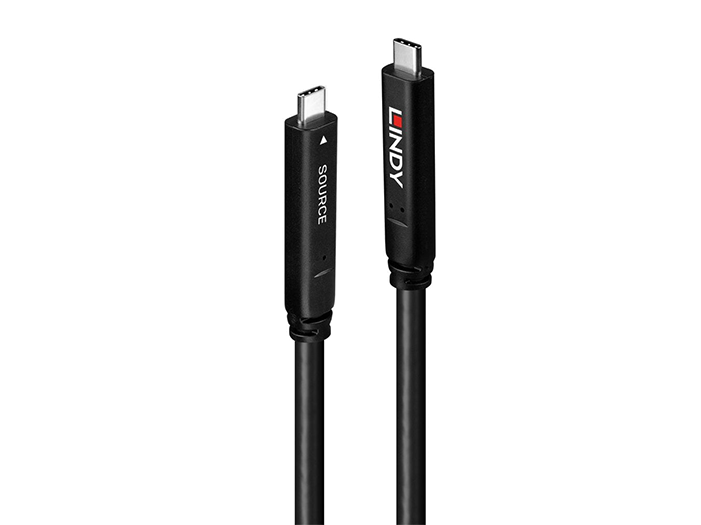

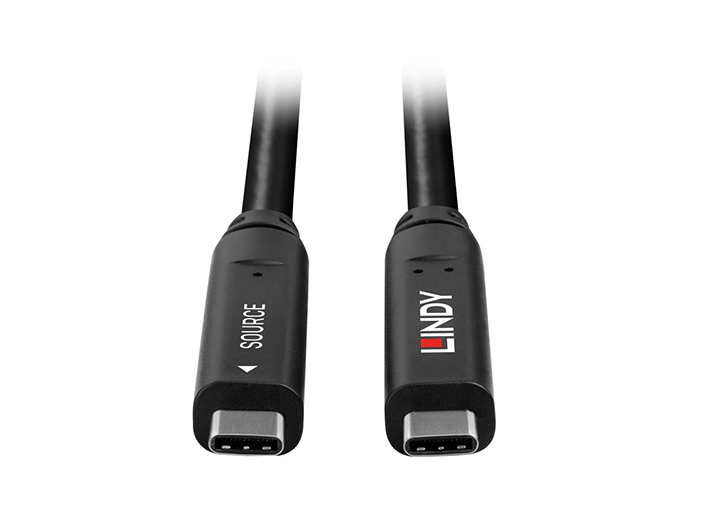

Lindy 8m USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable

  • NG # 02329-HW-LIndy-006

The Lindy USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable is a unique solution, which uses optical fiber as high-speed transmission medium to perfectly transmit USB 3.2 as well as DP 1.4 data over a distance of 8m.

Manufactured By :
Lindy
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

It combines data, video and USB Power Delivery into a single, high performance cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels. A more flexible construction makes this cable simple to install, with increased resistance to RFI/EMI ensures that the cable can be installed in sensitive environments.

The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.



Specification

Connectors

  • Connector A: USB Type C Male
  • Connector B: USB Type C Male
  • Power: PD 20V / 3A (60W)
  • Housing Material: Plastic
  • Connector Plating: Stainless Steel + Solder Nickel 50u" min.
  • Pin Construction: Copper Alloy + Mating area Au
  • Pin Plating: Mating area: 2µ" Au min.
  • Dimensions (approx.) WxDxH: 55x9x12.35mm (2.17x0.35x0.49in)

Cable Construction

  • Length: 8m (26.25t)
  • Standard: USB 3.2 / 3.1 Gen 1
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 6.5mm (0.26in)
  • Jacket Material: PVC
  • Conductor Material: -
  • Conductor Gauge: 21AWG*3 (Power)
  • Shielding: Tinned Copper



Specifications

  • Supported Bandwidth: 5Gbps (USB 3.2 Gen 1), 16.2Gbps (DP 1.4, 2 lanes)
  • Maximum Resolution: 4K 3840x2160@30Hz
  • Nominal Attenuation: ≤10dB/km@850nm,≤8dB/km@1300nm
  • Minimum Bend Radius: Installation:100mm; Operation: 50mm (IEC-60794-1-21)
  • Maximum Tensile Load: Installation: 350N; Operation: 200N IEC-60794-1-21
  • Operating Temperature: -10°C to 70°C (14°F - 158°F)
  • Storage Temperature: -40°C to 85°C (-40°F - 185°F)
  • Transmission Medium: Optical Fiber 62.5/125 Multimode Fiber
  • Transmission Technology: 850nm Laser Optical

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in)
  • Net Weight: 0.61kg (1.34lb)
  • Gross Weight: 0.77kg (1.7lb)
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • 8m USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable
  • Lindy manual

Purchasing Information

  • No.: 43393
  • EAN: 4002888433938
