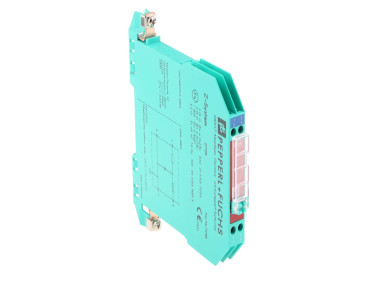

Pepperl + Fuchs 1 Channel Zener Barrier, ATEX

  • NG # 03001-HW-PEP-021

  • MF # 261542

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

P&F Single Channel Zener Diode Barriers


Zener barriers provide cost saving Ex-protection for various applications in process automation systems. The amount of energy transferred to the hazardous location is limited to a safe level incapable of igniting the explosive atmosphere.


Typical application - transmitters, transducers, solenoid valves and relays


Certificate No.

BAS 01 ATEX 7005

Group and Category

[EEx ia] IIC Class 1, Div1, Groups A-G


Isolation Barriers


Pepperl+Fuchs shunt zener diode barriers are for use as safety interfaces between intrinsically safe and non-intrinsically safe circuits. They are manufactured from Makrolon® and designed to conduct electrical signals - in either direction - between safe and hazardous areas and to limit the amount of energy which can be transferred from a safe to a hazardous area in the event of fault conditions occurring in the safe area. All systems shown are licensed for [EEx ia] IIC Class 1, Div1, Groups A-G

Specification

Number of Channels1
Module TypeZener Barrier
Barrier TypeZener Barrier
Maximum Voltage250V
Hazardous Area CertificationATEX
Safety Current Resistance327Ω
Maximum Operating Temperature+60°C
Supply Voltage26.9V dc
Minimum Operating Temperature-20°C
Maximum Current93mA
Safety Current Maximum93mA
Safety Voltage Maximum250 V
Operating Temperature Range-20 → +60°C
