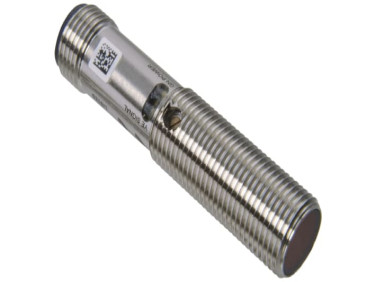

Pepperl + Fuchs Diffuse Photoelectric Sensor, Barrel Sensor, 0 → 300 mm Detection Range

NG # 03006-HW-PEP-026
MF # OBD300-12GM40-E5-V1

Manufactured By :

Pepperl+Fuchs

Ask For Price

Stock

Need Help Ordering?

Call +88 01714243446

Custom Pricing

Get A Quote

Ask For Price

Need Help Ordering?

Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Diffuse mode sensor, M12 threaded housing design, metal housing, front optical face, 300 mm detection range, red light, light/dark on, 1 PNP output, M12 plug

Robust M12 threaded housing
Less space required
Light/dark ON, programmable

Specification

Sensor Style	Barrel
Detection Type	Diffuse
Detection Range	0 → 300 mm
Output Type	PNP
Electrical Connection	M12 4 Pin Connector
Maximum DC Voltage	30V
Terminal Type	M12 4 Pin Connector
Light Source	LED
IP Rating	IP67
Maximum Current	100 mA
Response Time	500 μs
Minimum Operating Temperature	-30°C
Housing Material	Brass
Mounting Type	Flange Mount
Maximum Operating Temperature	+60°C
