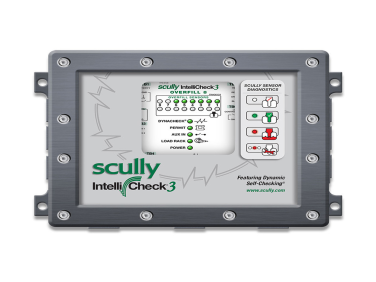

Scully IntelliCheck®3 Overfill Control Unit

  • NG # 03162-HW-SCULLY-030

  • MF # SC09562

Manufactured By :
Scully
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Scully's IntelliCheck®3 is the safest and most advanced tank trailer overfill prevention and retained product monitoring system. It saves time and money by reducing down-time and ensuring safe, dependable loading operations.

Specification

  • Temperature Range:
    • Operating: -40 to +140°F (-40 to +60°C)
    • Storage: -40 to +140°F (-40 to +60°C)
  • Wiring Entry Holes: 1/2 NPT for FM models
  • Sensor Inputs:
    • Overfill: Scully Two-Wire Optic Sensors (SP-TO) or Scully Five-Wire Optic Sensors (SP-FU)
    • Retained: Scully Two-Wire Optic Sensors (SP-IR)
  • Power Requirement:
    • Nominal Voltage: 12 to 24 VDC (-0.5, +8 VDC)
    • Consumption: 9.6 Watts maximum at 24 VDC, 4.8 Watts maximum at 12 VDC
  • Response Time:

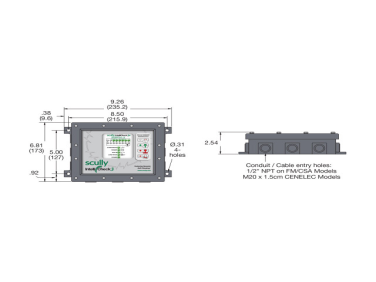

  • Outside Dimensions: 9.26 in. Wide X 6.81 in. High X 2.54 in. Deep
  • Weight: 6 lbs. (2.7 kg)
  • Interface Inputs: C14Less than half-a-second maximum after detection of wet sensor or fault condition
    • TB4 & TB5 Sensor Inputs: EN 13922 compliant
    • TB3 Auxiliary: I.S. input switch closure less than 100 ohms
  • Interface Outputs:
    • TB7: 2.0A at 32 VDC maximum Non-intrinsically safe relay
    • TB6 Rack interface: EN 13922 compliant I.S. interface for 2/5- wire sensors
    • TB6: Intrinsically safe relay output. 200mA at 32 VDC maximum or 1.6A at 16 VDC maximum
  • Approvals: IntelliCheck®3 has safety approvals as an intrinsically safe monitoring device for use in:
    • Canada and the United States: Canada and the United States: Class I, Division 2, Group CD, T6, Type 4 or Class I, Zone 2, IIB T6, IP 65 With intrinsically safe outputs for Class I, Division 1, Group CD Class 1, Zone 0, IIB Locations
    • Ambient temperature for all ratings (Ta ? -40°C to +60°C)
