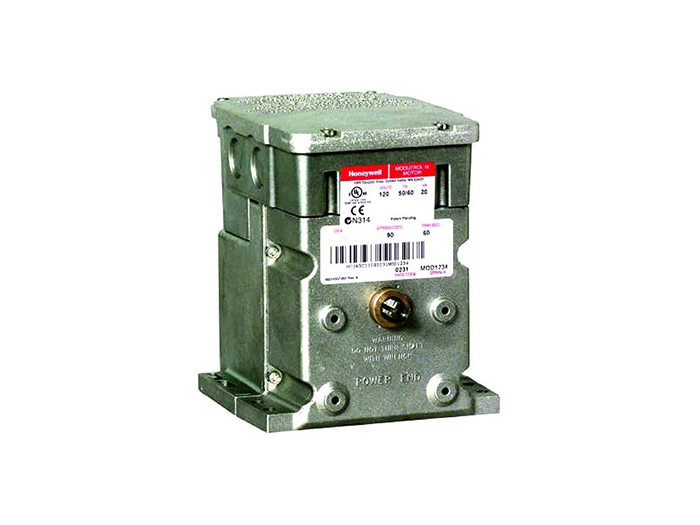

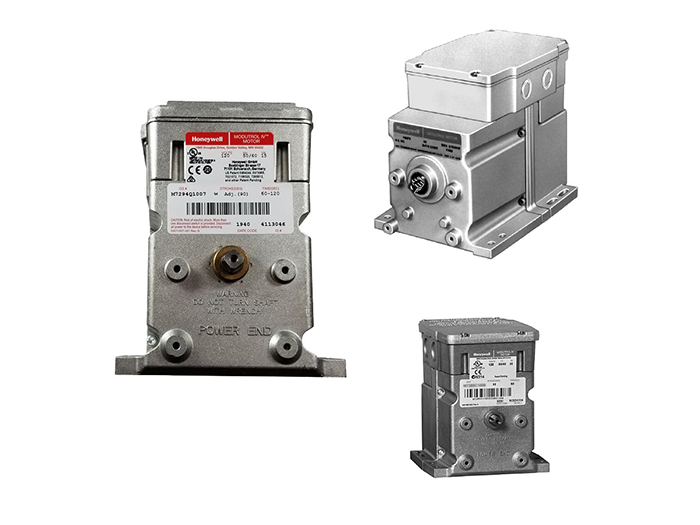

Honeywell Series 41 And 81 Modutrol IV™ Motor

  • NG # 00979-HW-HNWEL-099

  • SKU # 00979-HW-HNWEL-099

Series 41 and 81 Modutrol IV™ motors are 2-position (line and low-voltage control, respectively) spring return motors.

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Series 41 and 81 Modutrol IV™ motors are 2-position (line and low-voltage control, respectively) spring return motors. They are used to operate normally open (NO) or normally closed (NC) dampers or valves in applications where it is necessary or desirable to have the controlled element return to the starting position in the event of power failure or interruption.

Specification

Specification

  • Fixed torque throughout the entire voltage range

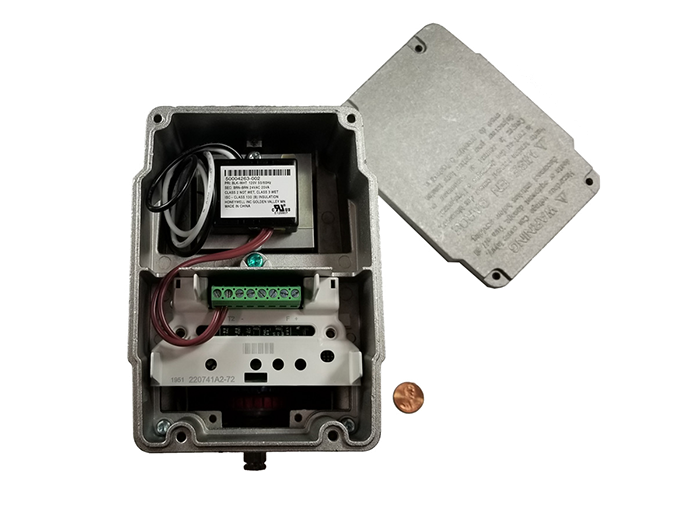

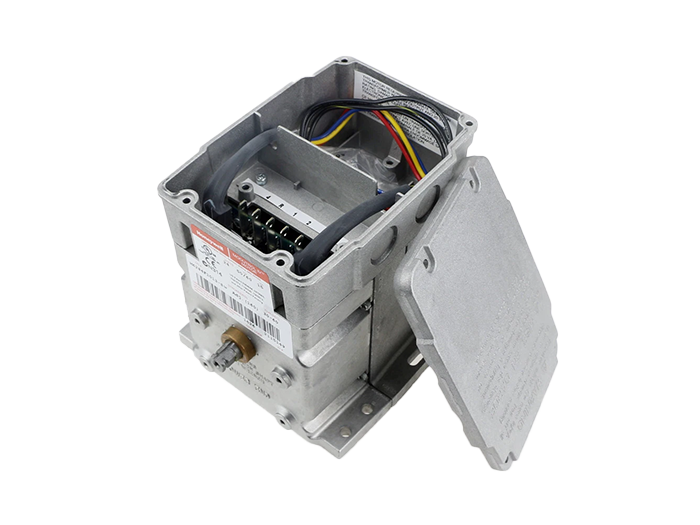

  • Integral junction box provides NEMA 3 weather protection
  • Motor and circuitry operate from 24V AC; models available with factory
  • installed transformer, or a field added internal transformer
  • Quick-connect terminals are standard (screw terminal adapter is available)
    Adapter bracket for matching shaft height of older motors is available
  • Die-cast aluminum housing
  • Motors have auxiliary switch cams
  • Integral auxiliary switches are available factory mounted, or can be field added
  • Motors have dual shafts (slotted and tapped on both ends)
  • Nominal timing standard of 30 seconds (90° stroke), and 60 seconds (160° stroke); other timings available
