NG # 00400-HW-ECOM-049
MF # 00400-HW-ECOM-049
SKU # 00400-HW-ECOM-049

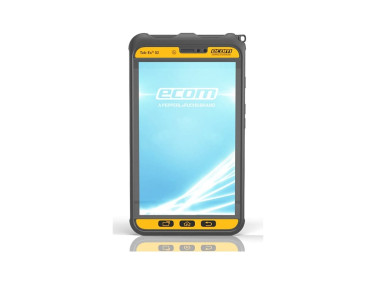

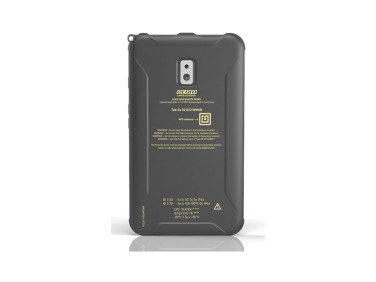

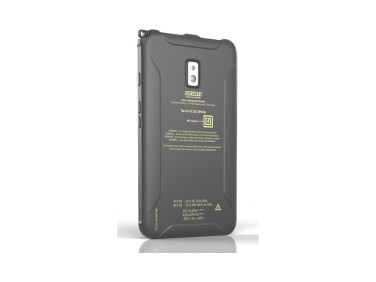

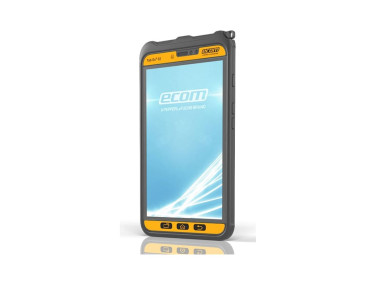

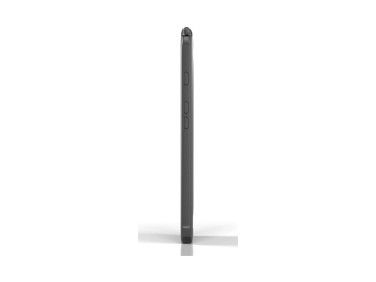

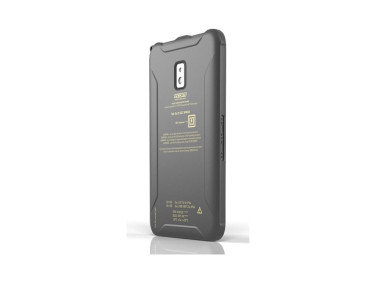

ecom's hazardous area tablet, the Tab-Ex® 02, based on Samsung's state of the art Galaxy Tab Active2, leverages Samsung's know-how and brings a new level of customer focused solutions and increased ease of use to mobile workers in Oil & Gas, Refining, Chemical, Pharmaceuticals and other hazardous industries.
The improved hardware of the Tab-Ex 02 enables, for example, to identify objects in an installation via augmented reality applications. The software delivers all the underlying, existing data directly into the user's field of vision in real time, while also making it shareable within the company network
Specification
| OPERATING SYSTEM | Android™ |
| PROCESSOR | Exynos 7 Octa, 1.6GHz Octa-Core (Cortex®-A53) |
| MEMORY | RAM: 3 GB, Internal data memory: 16 GB |
| MICRO-SD | optional MicroSD 256 GB |
| DISPLAY | 1280x800 pixels (WXGA), 8“, TFT, 480 nit Brightness, Operation: also with gloves / in wet conditions & snow |
| SENSORS | Face Recognition, NFC, Gyro Sensor, Geomagnetic Sensor, Hall Sensor, RGB Light Sensor, Proximity Sensor, GPS |
| DIMENSIONS AND WEIGHT | 127.6 x 214.7 x 9.9 mm, 575 g (Wi-Fi) / 579 g (LTE) |
| ENVIRONMENT TEMPERATURE | -20 °C to +55 °C |
| PROTECTION | IP64 according to EN/IEC 60079-0 (ATEX/ IECEx) |
| CONNECTIVITY | Wi-Fi 802.11 a/b/g/n/ac/ax (2.4GHz + 5GHz), 2x2 MIMO,Bluetooth® v5.0, Wi-Fi Direct, GPS, GLONASS, Beidou, Galileo, Headphone Out: 3.5 mm, |
| CAMERA | Rear: 13 MP AF with LED Flash; Front: 5 MP / optional: non-camera |
| BATTERY CAPACITY | Li-Ion battery 3.8 V / 4,450 mAh / 16.91 Wh / up to 11 hours battery life |
| SECURITY | Samsung KNOX 3.2, Facial Recognition |
| CAMERA | 8 MP AF + 5 MP / optional: non-camera |
| PORT | USB 2.0 Type-C / microSD slot (up to 256GB) / Pogo Pin (charging and USB signal for keyboard) |
| STYLUS | S Pen / water and dust resistant (IP68) / in-box |
| RUGGEDNESS | Water and dust resistant |
