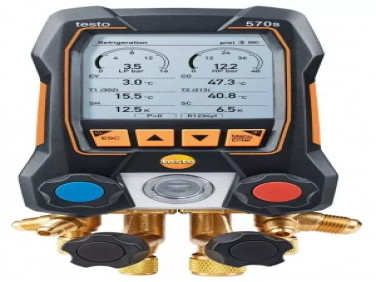

Testo 570s Smart Digital Manifold with Bluetooth, -15 to 870 psi, -58 to 302°F

  • NG # 01539-HW-TESTO-012

  • MF # 01539-HW-TESTO-012

  • SKU # 01539-HW-TESTO-012

Extremely durable with a long-lasting battery, this digital manifold is the optimal solution for long-term measurements on refrigeration, air conditioning systems, and heat pumps. Moreover, this manifold features an intelligent error analysis in the Smart App, allowing anomalies to be detected quickly and reliably.

Manufactured By :
Testo
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Offers a runtime of up to 360 hours, large data memory, and a high degree of measuring accuracy, this digital manifold is a reliable partner for long-term and short-term measurements. In addition, due to its high robustness with protection class IP54, this manifold continuously delivers high performance even under the most challenging conditions.

Specification

Specification

PressureMeasuring range: -15 to 870 psi (-1 to 60 bar)
Accuracy: ±0.2% full scale
Resolution: 0.14 psi (0.01 bar)
Probe connections: 3 x 7⁄16"-UNF + 1 x ⅝"-UNF
Overload: 943 psi (65 bar)
TemperatureMeasuring range: -58 to 302°F (-50 to 150°C)
Accuracy: ±0.9°F (±0.5°C)
Resolution: 0.1°F/°C
Probe connections: 2 x plug-in (NTC)
Radio Range492.12' (150 m)
System RequirementsRequires iOS 11.0 or newer; Android 6.0 or newer; mobile end device with Bluetooth 4.0
Protection ClassIP54
Environmental ConditionsOperating temperature: -4 to 122°F (-20 to 50°C)
Storage temperature: -4 to 140°F (-20 to 60°C)
Automatic Shut-OffAfter 10 minutes when not connected via Bluetooth
BatteryType: Built-in rechargeable battery; replaceable battery (3 x alkaline batteries AA)
Life:
With built-in rechargeable battery: ≥220 hours without Bluetooth® and illumination; ≥120 hours with Bluetooth® and illumination
With AA batteries: ≥145 hours without Bluetooth® and illumination; ≥75 hours with Bluetooth® and illumination
Dimensions9 x 4 x 3" (229 x 112 x 71 mm)
Weight2.9 lbs (1.3 kg)
