NG # 03656-HW-AAE-033

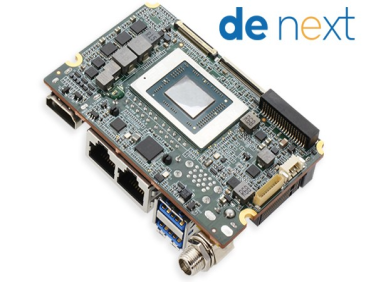

AAEON de next-V2K8 86 x 55mm Single Board with AMD Ryzen™ Embedded V2000 Series Processor
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuotePowered by the AMD Ryzen™ Embedded V2718 and V2516 processors, the de next-V2K8 boasts an astonishing 8 cores and 16 threads alongside Zen 2 x86 core architecture and 7nm process technology in an unprecedentedly small board. Taking advantage of this strong base, the de next-V2K8 has the high-performance computing performance for edge AI applications along with the mobility for deployment in robotics solutions.
| SYSTEM | |
| FORM FACTOR | 86mm x 55mm, Single Board Computer |
| CPU | AMD Ryzen™ Embedded V2516 with Radeon™ Graphics (6C/16T, 2.1GHz, 25W) |
| CHIPSET | Integrated with AMD SoC |
| MEMORY TYPE | Onboard LPDDR4x 3200, default with 16GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | fTPM |
| RTC Battery | Lithium Battery 3V/240mAh |
| DIMENSION (L X W) | 3.38" x 2.17" (86mm x 55mm) |
| OS SUPPORT | Windows 10 (64bit) Ubuntu 22.04 (kernel 5.15) |
| POWER | |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | AT/ATX |
| CONNECTOR | DC Jack Connector |
| POWER CONSUMPTION | V2718 , LPDDR4 16GB, 3.07A @12V, 36.84W (TYPICAL) V2718 , LPDDR4 16GB, 3.92A @12V, 47.04W (MAX) |
| DISPLAY | |
| CONTROLLER | AMD V-Series V2000 with Radeon™ Graphics |
| LVDS/eDP | eDP 1.4 x 1 , up to 3840 x 2160 |
| DISPLAY INTERFACE | HDMI 1.4 x 1 , up to 3840 x 2160@30Hz |
| Multiple Display | 2 Simultaneous Displays |
| EXTERNAL I/O | |
| ETHERNET | Realtek RTL8111, 1GbE RJ-45 x 1 Intel® i226, 2.5GbE RJ-45 x 1 |
| USB | USB 3.2 Gen 2 x 2 |
| VIDEO | HDMI 1.4b x 1 |
| INTERNAL I/O | |
| USB | USB 2.0 x 4 Note : USB2.0 x 2 shared with adapter card PER-T642 / PER-T643. (de next-V2K8-A11 only) |
| SERIAL PORT | COM1 , COM2 (RS232/422/485, support 5V/RI) |
| VIDEO | eDP 1.4 x 1 |
| SATA | SATA 6.0 Gbps x 1 with +5V SATA Power Connector x 1 |
| DIO/GPIO | GPIO 8 bits |
| SMBus/I2C | Optional |
| FAN | 4 Pin Smart Fan |
| Front Panel | Power Button, Reset Button, Power LED, SATA LED, Buzzer |
| EXPANSION | |
| M.2 | M.2 2280 M-key x 1 (PCIe[x2] x 1 or PCIe[x1] x 2, selected by BIOS) |
| OTHERS | FPC Connector x 1 (PCIe 3.0 [x4] x 1) |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 609,263 |
| CERTIFICATION | CE/FCC Class A |
