NG # 03643-HW-AAE-020

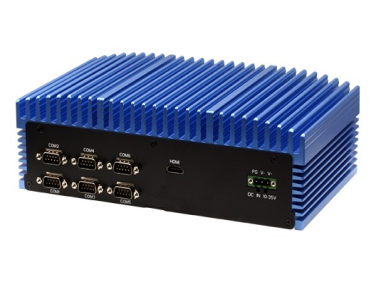

The BOXER-6641 is designed to provide users with unmatched flexibility and performance. Available with two chipsets, the H310 (BOXER-6641-A1) and C246 (BOXER-6641-A2), the system offers a range of processors from the 8th Generation Intel® Core™ and Xeon® processor family (formerly Coffee Lake), from Celeron® G4900T and Pentium® G5400T up to Xeon® E-2124G (up to 71W). Combined with up to 32GB of ECC or non-ECC DDR4 2666MHz RAM and support for two hard drives, the BOXER-6641 is currently the most powerful fanless industrial system available on the market.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe BOXER-6641 is built to easily integrate into any industrial application. I/O features include six COM ports and up to eight USB 3.2 Gen 1 ports (A2 model). The BOXER-6641 also comes with four Intel® Gigabit Ethernet ports, including one Intel® i219 chipset, with built-in support for Intel® vPRO and Active Management Technology (Intel® AMT) available on BOXER-6641-A2. The BOXER-6641 is expandable with two mPCIe slots, capable of supporting AI applications with solutions such as AAEON’s AI Core X with Intel® Movidius® Myriad™ X VPU.
| SYSTEM | |
| CPU SUPPORT (default: n/a) | Intel® i9-9900T Intel® i7-9700TE Intel® i7-8700T Intel® i5-8500T Intel® i3-8100T Pentium® G5400T Celeron® G4900T |
| CHIPSET | Intel® H310 |
| SYSTEM MEMORY | DDR4-2666 SO-DIMM slot x 2 Up to 64GB, ECC or Non-ECC Support |
| DISPLAY INTERFACE | HDMI x 2 |
| STORAGE DEVICE | 2.5" SATA HDD/SSD Bay x 1 |
| ETHERNET | Intel® i211 x 3, i219 x 1 |
| I/O | HDMI x 2 RJ-45 x 4 for GbE LAN (i211 x 3, i219 x 1) USB 3.2 Gen 1 x 4, USB2.0 x 4 DB-9 x 6 for RS-232/422/485 Audio x 1 (MIC-in, Line-out) 3 pin 10~35V Power Input x 1 Power Button x 1 Remote Power switch x 1 Reset Button x 1 HDD LED x 1 SYS LED x 1 |
| EXPANSION | Full-size Mini PCIe x 1 Full-size Mini Card x 1 (PCIe/mSATA switch by BIOS, Default: mSATA) SIM slot x 1 |
| INDICATOR | HDD LED x 1 SYS LED x 1 |
| OS SUPPORT | Windows® 10 64-bit Linux Ubuntu 20.04 |
| POWER SUPPLY | |
| POWER REQUIREMENT | 3-pin DC Input 10~35V |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 10.4" x 3.19" x 6.15" (264.2mm x 80.92mm x 156.2mm) |
| GROSS WEIGHT | 10.4 lb (4.7 kg) |
| NET WEIGHT | 8.2 lb (3.7 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 131°F (-20°C ~ 55°C) with 0.5 m/s airflow – with TDP ≦ 35W CPU -4°F ~ 113°F (-20°C ~ 45°C) with 0.5 m/s airflow – with TDP >35W CPU |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 2 Grms/ 5 ~ 500Hz/ operation – SSD/mSATA 1 Grms/ 5 ~ 500Hz/ operation – HDD |
| CERTIFICATION | CE/FCC class A |
