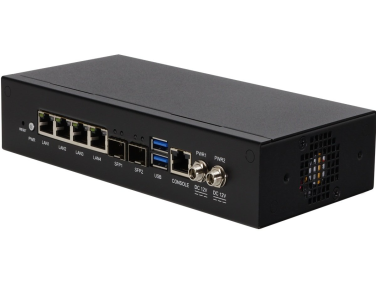

Get A QuoteNetwork Appliance with Intel® Alder lake N / Amston lake SoC Processor
| SYSTEM | |
| Form Factor | Desktop Network Appliance |
| processor | Intel® Alder lake N / Amston lake SoC Processor |
| Chipset | SoC |
| System Memory | DDR5 SO-DIMM up to 16GB |
| NETWORK | |
| Ethernet | Intel® i226 V, 2.5 Gigabit Ethernet x 4 Intel® i210IS, SFP x 2 (co-lay with i210AT Copper x2) by PCIe Bridge ASM1806 |
| Bypass | 2 Pairs |
| DISPLAY | |
| Connector | HDMI x 1 (Only support on Alder lake N) |
| STORAGE | |
| HDD | 2.5” HDD Bay x 2, 1 SATA co-lay with M.2 2242 |
| CF/CFast/mSATA | Onboard 32G eMMC, up to 128G |
| INTERNAL/ EXPANSION INTERFACE | |
| Mini-PCIe Slot | M.2 B Key x 1 (3042+3052+ PCIe [x1]) by ASM1086 for4G/5G, Co-lay Mini-Card full size slot) with Push-pin SIM for 4G LTE/Wifi (Without ASM 1806, only USB 3.2 Gen 1+2.0 signal for 4G LTE/5G.) M.2 E Key x 1 (2230 ,Co–lay Mini-Card Half-size slot for WiFi) |
| USB | 2 x USB 3.2 Gen 1 type A port |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| Watchdog Timer | 1~255 step by software programmable |
| Software Button | GPIO Programmable push button x 1 |
| TPM | SPI TPM v2.0 (optional) nuvoton co-lay Infineon SLB 9672VU2.0 FW15.21 |
| GPIO | (4 bits input, 4 bits output optional) |
| Fan | Fan x 1 |
| MTBF (hours) | TBD |
| Color | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| Power Requirement | Dual in 12V 40W Adapter Dual in 12V 60W Adapter for Amston Lake X7809C SKU |
| Operating Temperature | 32 ~ 122°F (0 ~ 40°C) |
| Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
| Operating Humidity | 10%~90% relative humidity, non-condensing |
| Storage Humidity | 10 ~ 80% @ 40C, non-condensing |
| Vibration | 0.5G / 5 ~ 500Hz / operation 1.5G / 5 ~ 500Hz / non-operation |
| SHOCK | 0G peak acceleration (11 m sec. duration), operation 20G peak acceleration (11 m sec. duration), non-operation |
| Dimension (W x D x H) | Standard: 220mm x 105mm x 44mm(W x D x H) |
| I/O | |
| Front Panel | Power LED x 2 Status LED x 1 Bypass LED x 2 Storage Active LED x 1 Ethernet LED x 12 Antenna Hole x 4 Accessible SIM slot x 2 |
| Rear Panel | DC Power Input Connector Lockable x 2 Power Button x 1 USB 3.2 Gen 2 Port x 2 RJ-45 Port x 4 Fiber RJ45 x 2 Antenna Hole x 4 |
