NG # 2239-SW-APC-010
MF # SMT1500C

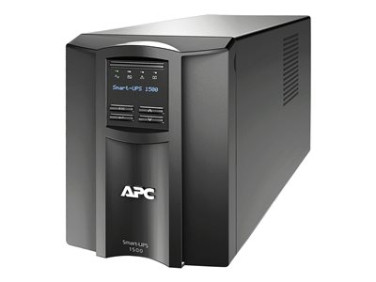

APC Smart-UPS 1500 LCD - UPS - AC 120 V - 1 kW - 1440 VA - USB - output connectors: 8 - 0U - black - with APC SmartConnect
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteIntelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
| General | |
| Device Type | UPS - external |
| Height (Rack Units) | 0U |
| Color | Black |
| Bundled with | APC SmartConnect |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 144 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 8 x power NEMA 5-15 |
| Output Voltage | AC 120 V ± 5% - 50/60 Hz |
| Power Capacity | 1 kW / 1440 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 680 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.4% at 75% Load, 97.2% at 25% Load, 98.2% at 50% Load, 98.4% at 100% Load |
| Battery | |
| Quantity | 1 |
| Technology | Lead acid |
| Run Time (Up To) | 7 min at full load ¦ 301 min at 50 Watts ¦ 172 min at 100 Watts ¦ 84 min at 200 Watts ¦ 51 min at 300 Watts ¦ 33 min at 400 Watts ¦ 17 min at 600 Watts ¦ 12 min at 700 Watts ¦ 10 min at 800 Watts ¦ 8 min at 900 Watts ¦ 23 min at 500 Watts |
| Recharge Time | 3 hours |
| Features | Maintenance free, sealed, leak-proof |
| Networking | |
| Remote Management Interface | USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 6 ft |
| Equipment Protection Value | 150000 US Dollars |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, cold-start function, automatic self-test, hot-swappable batteries, energy meter |
| Compliant Standards | CSA, ICES-003, UL 1449, UL 1778, FCC Part 15 B, CSA C22.2 No. 107.1, RoHS, REACH |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 3 years ¦ Limited warranty - batteries - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 45 dBA |
| Dimensions & Weight | |
| Width | 6.7 in |
| Depth | 17.3 in |
| Height | 8.6 in |
| Weight | 0.87 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13 in |
| Shipping Depth | 23.2 in |
| Shipping Height | 13 in |
| Shipping Weight | 59.92 lbs |
