NG # 2229-SW-APC-001
MF # SMTL1500RM3UC

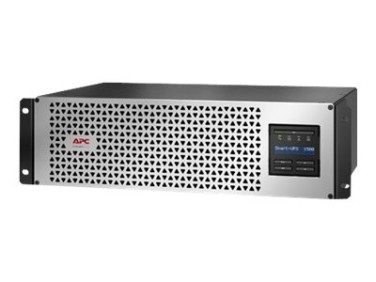

APC Smart-UPS Li-Ion 1500VA Short Depth with SmartConnect - UPS (rack-mountable / external) - AC 110/120/127 V - 1.35 kW - 1500 VA - RS-232, USB - output connectors: 6 - 3U - black, silver - not sold in Vermont - for P/N: AR112, AR8213, NBWL0356A, SCL500RM1UC, SCL500RM1UNC, SMTL1000RM2UC, SMTL750RM2UC
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteIntelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
| General | |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 3U |
| Color | Black, silver |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 110/120/127 V |
| Input Voltage Range | AC 82 - 144 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Output Voltage | AC 120 V ± 5% - 50/60 Hz |
| Power Capacity | 1.35 kW / 1500 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 680 Joules |
| Battery | |
| Technology | Lithium ion |
| Recharge Time | 6 hours |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Miscellaneous | |
| Cables Included | Serial cable - external ¦ USB cable - external ¦ Power cable - integrated - 8 ft |
| Equipment Protection Value | 150000 US Dollars |
| Features | Audible alarm, LCD display |
| Compliant Standards | NOM, UL 1449, UL 1778, CSA C22.2 No. 107.1, RoHS, FCC Part 15 A, REACH, IP20 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 45 dBA |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 11.9 in |
| Height | 5.2 in |
| Weight | 42.99 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23 in |
| Shipping Depth | 17.6 in |
| Shipping Height | 11 in |
| Shipping Weight | 50 lbs |
| Compatibility Information | |
| Designed For | P/N: ACF600, AP5606, AP5616, AR100, AR100HD, AR112, AR8213, NBWL0356A, SCL500RM1UC, SCL500RM1UNC, SMTL1000RM2UC, SMTL750RM2UC, SU2200R3X167, SUA3000R2IX38 |
