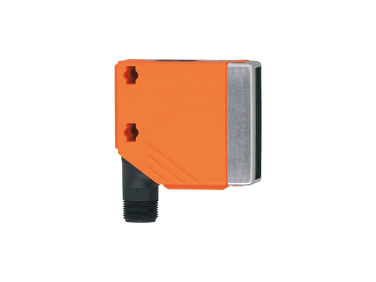

Diffuse reflection sensor with background suppression O5H500

  • NG # 03693-HW-IFM-020

Very long range precise background suppression Sensitivity adjustable via teach buttons

Manufactured By :
Ifm
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Robust housing for use in harsh industrial environments programmable light-on/dark-on mode

Specification



Type of lightred light
Housingrectangular

Application

Special featureBackground suppression
Function principleDiffuse reflection sensor

Electrical data

Operating voltage[V]10...36 DC
Current consumption[mA]25
Protection classII
Reverse polarity protectionyes
Type of lightred light
Wave length[nm]624

Outputs

Electrical designPNP
Output functionlight-on/dark-on mode; (programmable)
Max. voltage drop switching output DC[V]2.5
Permanent current rating of switching output DC[mA]200
Switching frequency DC[Hz]1000
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Detection zone

Range[mm]50...1800; (white paper 200 x 200 mm 90% remission)
Range on white object (90 % remission)[mm]50...1800
Range on grey object (18 % remission)[mm]50...900
Range on black object (6 % remission)[mm]50...600
Range adjustableyes
Max. light spot diameter[mm]50
Light spot dimensions refer toRange
Background suppression availableyes

Operating conditions

Ambient temperature[°C]-25...60
ProtectionIP 67

Tests / approvals

EMC
EN 60947-5-2
MTTF[years]360

Mechanical data

Weight[g]67.5
Housingrectangular
Dimensions[mm]56 x 18.2 x 46.8
Materialshousing: PA; bezel: stainless steel; operator interface: TPU
Lens material
PMMA
Lens alignmentside lens

Displays / operating elements

Display
switching status1 x LED, yellow
Teach functionyes
Electronic lockyes

Remarks

Remarks
operating voltage "supply class 2" according to cULus
Pack quantity1 pcs.

Electrical connection

ConnectionConnector: 1 x M12; coding: A
