NG # 03685-HW-IFM-012

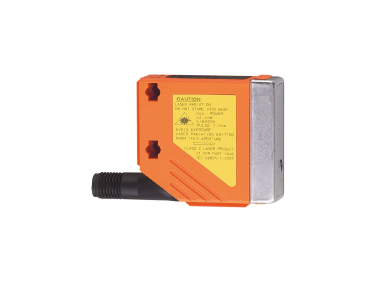

Very long range due to time-of-flight measurement Reliable background suppression and colour-independent detection
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteWith display and pushbuttons for precise switch point setting Oblique angle to the object possible Reliable detection of glossy surfaces
| Type of light | red light |
| Laser protection class | 2 |
| Housing | rectangular |
| Special feature | Background suppression |
| Operating voltage[V] | 10...30 DC; ("supply class 2" to cULus) |
| Current consumption[mA] | 75; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 650 |
| Typ. lifetime[h] | 50000 |
| Number of inputs and outputs | Number of digital outputs: 2 |
| Total number of outputs | 2 |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (complementary) |
| Max. current load per output[mA] | 100 |
| Switching frequency DC[Hz] | 11 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Max. light spot diameter[mm] | 5 | |
| Light spot dimensions refer to | 2 m | |
| Detection range hysteresis[%] | < 2.5 | |
| Note on monitoring range hysteresis |
| |
| Background suppression available | yes | |
| Background suppression[m] | < 20 |
| Measuring range[m] | 0.03...2 |
| Sampling rate[Hz] | 33 |
| Communication interface | IO-Link | ||||||
| Transmission type | COM2 (38,4 kBaud) | ||||||
| IO-Link revision | 1.1 | ||||||
| SDCI standard | IEC 61131-9 | ||||||
| Profiles |
| ||||||
| SIO mode | yes | ||||||
| Process data analogue | 1 | ||||||
| Process data binary | 1 | ||||||
| Min. process cycle time[ms] | 6.4 | ||||||
| Supported DeviceIDs |
|
| Ambient temperature[°C] | -25...60 | |
| Note on ambient temperature |
| |
| Protection | IP 65; IP 67 | |
| Max. immunity to extraneous light[klx] | 10; (on the object) |
| EMC |
| ||||||||||||||||||||
| Vibration resistance |
| ||||||||||||||||||||
| Shock resistance |
| ||||||||||||||||||||
| Laser protection class | 2 | ||||||||||||||||||||
| Notes on laser protection |
| ||||||||||||||||||||
| MTTF[years] | 151 |
| Weight[g] | 61.6 |
| Housing | rectangular |
| Dimensions[mm] | 56 x 18.2 x 46.8 |
| Materials | housing: PA; bezel: stainless steel; operator interface: TPU; lens: PMMA |
| Lens alignment | side lens |
| Display |
| ||||||
| Display unit | cm |
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A |
