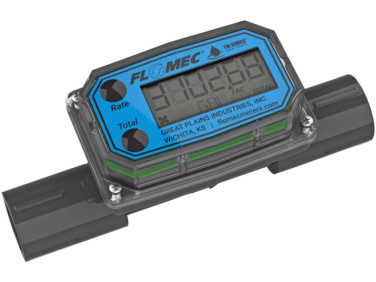

Flomec GPI TM Series Water Meter with Q9 Display

  • NG # 0739-HW-FLO-001

Industrial turbine flow meter for water applications up to 600 gpm.

Manufactured By :
Flomec GPI
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

GPI TM Series Water Meters indicate batch, cumulative totals, and rate of flow measured in gallons, litres or cubic feet. They are easy to install with Spigot, NPT, BSP, 150# ANSI flange, or DIN flange fittings. The alkaline battery lasts for two years, and the non-volatile totals mean amounts are retained when batteries are replaced or power is lost. TM Series meters are available with either a computer for local electronic display, or one of three versions of output modules to provide a digital signal to customer interfacing equipment.

Fitting Turbine Size
Spigot, NPT, BSP 1in, 1 1/2in and 2in
150# ANSI Flange 3in and 4in
DIN Flange 3in and 4in



GPI TM Series Water Meter Applications
OEM water treatment equipment / skids
Water-based cooling systems
Sub-metering of facility water usage
Chemical feed systems
Wastewater treatment equipment
Monitoring clean fluids
Irrigation
Cooling towers
Batching
Blending
Plant process water

Specification


1 to 600 gpm (3.8 to 2271 lpm)±3% accuracy225psi
150psi (BSP)
135psi (DIN)32 to 140°F (0 to 60°C)0.90in (23mm) low-profile electronics1/2 to 4in turbine sizes availableCE approval
IP65
RoHS 2011/65/EU
NSF certified (3 and 4in only)
