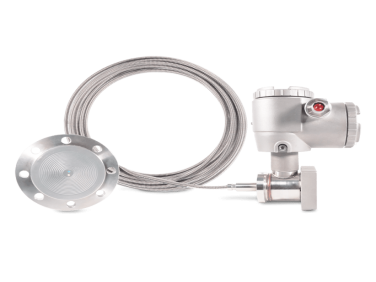

Fuji Electric Nuclear analog diaphragm seal gauge pressure transmitter - FYB - K3

  • NG # 03602-HW-FUJI-019

Manufactured By :
Fuji Electric
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The FYB analog transmitter is a device that accurately measures gauge pressure and converts it into a directly proportional 4-20 mA output signal. The heart of the measuring element is a Silicon micro-capacitive sensor, offset in the cell neck, providing exceptional performance. The FYB series is specifically designed for safety in nuclear applications requiring high reliability and long life in harsh environments (radiation with a Total Integrated Dose of 50kGray).

Specification

HousingL- or T-shaped housing
Measuring ranges (kPa) [e.max.]130
500
3000
10000
Weight per kg (without indicator)7,4
Materials in contact with the processStainless steel 316, Stainless steel 316 L, Hastelloy C
Case materialsStainless steel 316
Membrane materialsStainless steel 316 L, Hastelloy C
Stability± 0.5% of max. scale for 30 days.
Ambient temperature0 to 70 °C
Power supply13 to 53 Vdc
Output signal / Load resistance4 to 20 mA / 550 Ω
DampingConfiguration between 0.1 and 3.2 seconds
Zero and span adjustmentThe zero point can be adjusted using the external adjustment screw on the electronic box, and the scale using the internal adjustment screw.
Electrical connections"M20 x 1.5 or
Souriau subbase 8N35, or
Souriau subbase 8N45S, or
Souriau subbase 8N4, or
SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5
(compatible with 8N45 on the Park)".
OptionsDegreasing treatment, Additional marker plate, Vacuum service
