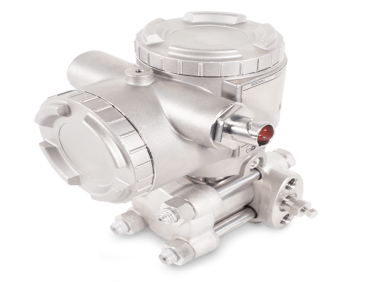

Fuji Electric Nuclear analog gauge pressure transmitter - FYG - K3

NG # 03601-HW-FUJI-018

Manufactured By :

Fuji Electric

Ask For Price

Stock

Need Help Ordering?

Call +88 01714243446

Custom Pricing

Get A Quote

Ask For Price

Need Help Ordering?

Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The FYG analog pressure transmitter is a device that precisely measures gauge pressure and converts it into a directly proportional 4-20 mA output signal. The heart of the measuring element is a Silicon micro-capacitive sensor, offset in the cell neck, providing exceptional performance. The FYG series is specifically designed for safety in nuclear applications requiring high reliability and long life in harsh environments (radiation with a Total Integrated Dose of 50kGray).

Specification

Housing	L- or T-shaped housing
Measuring ranges (kPa) [e.max.]	130 500 3000 10000 50000
Weight per kg (without indicator)	5,7
Accuracy	± 2 %
Materials in contact with the process	Stainless steel 316, Hast C276, Stainless steel 316 L
Case materials	Stainless steel 316
Membrane materials	Stainless steel 316 L, Hast C276
Stability	± 0.2% of max. scale for 30 days.
Elevation / Deletion	Equal to the upper limit of static pressure
Process temperature	-40 to +120°C (silicone oil)
Ambient temperature	0 to 70 °C
Power supply	13 to 48V Vdc
Output signal / Load resistance	4-20 mA / 600 Ω
Damping	Configuration between 0.1 and 3.2 seconds
Zero and span adjustment	The zero point can be adjusted using the external adjustment screw on the electronic box, and the scale using the internal adjustment screw.
Electrical connections	M20 x 1.5 or Souriau subbase 8N35, or Souriau sub-base 8N45S, or Souriau subbase 8N4, or SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5 (compatible with 8N45 on the Park)
Options	Degreasing treatment, Additional marker plate, Vacuum service
