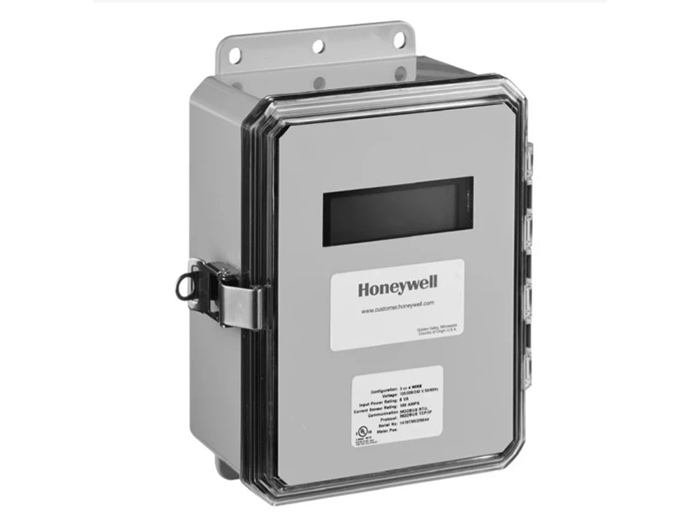

Honeywell E-Mon™ Class 3400 RS485 IP Smart Meter

  • NG # 01161-HW-HNWEL-187

A smart meter equipped with dual protocol capability offers communication options via RS485 and Ethernet, accompanied by two pulse outputs for enhanced versatility

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The E-Mon Class 3400 Meter is a 3-element meter with communications. The device is used to monitor electric power usage of individual loads after the utility meter and store kW and kVAR data for automatic meter reading. The Class 3400 meter is dual protocol capable and provides both RS485 and Ethernet communications.

Specification

  • Advanced 4-line display
  • On-board set-up option for IP Address, Meter date/time, Load Control Settings​ * ID codes for EZ7, Modbus, and BACnet​
  • Optional expanded feature package provides additional features:​ Load control option for load control/shedding​ and Two external meter inputs (water, gas, BTU, etc.) (stored in channels 5 & 6)​
  • Two pulse outputs (one kWh and one kVARh )​
  • 0-2 volt output split-core current sensors allow for enhanced safety and accurate remote mounting of sensors up to 500 feet from the meter without power interruption (Optional solid-core current sensors available in 100 & 200 amp)
  • Onboard diagnostics and verification system
  • Built-in RS-485 communications capability supports up to 52 Class 3200, 3400, 5000 meters, and/or IDR interval recorders(or combinations not to exceed 52 devices per channel). 00​
  • Cabling can be either daisy-chain or star configuration, 3-conductor, 18-22 AWG, up to 4,000 feet cable total per channel
  • Built-in communications​ - RS-485​ and Ethernet​
  • Protocols: EZ7​, Modbus RTU, Modbus TCP/IP, BACnet MS/TP, BACnet IP, LonWorks FT-10 (Twisted Pair)
  • Records kWh and kVARh delivered, kWh and kVARh received in first 4 channels. ​
  • Data stored in 15-minute intervals for up to 72 days or 5-minute intervals for up to 24 days
  • Maintains interval data storage in a first-in, first-out format.
  • Compatible with E-Mon Energy software via EZ7 protocol for automatic meter reading, billing, and profiling of interval energy data
  • The meter is designed for use on both 3-phase, 3-wire (delta) and 3-phase, 4-wire (wye) circuits. Optional single-phase, 3-wire configuration is available.
  • Outdoor NEMA 4X polycarbonate enclosure (standard)​ or industrial-grade JIC steel enclosure (available)​
