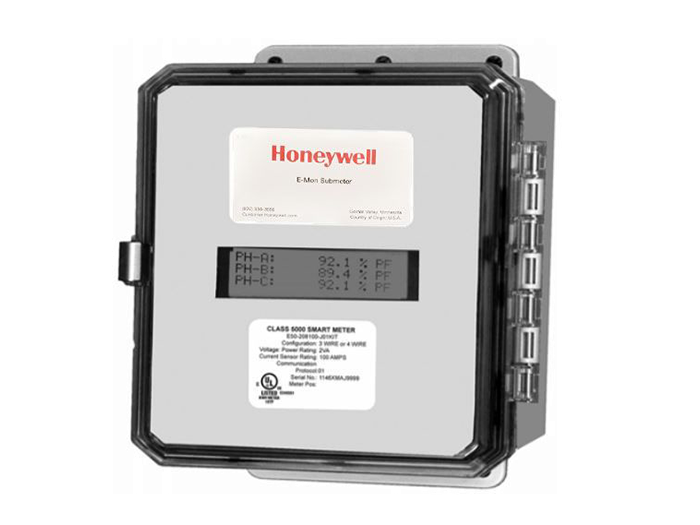

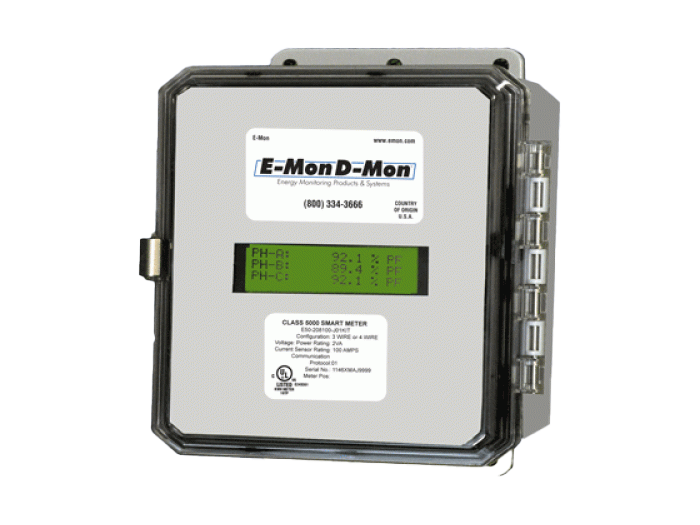

Honeywell E-Mon™ Class 5000 3-Phase RS485 IP Green Net Smart Meter

  • NG # 01162-HW-HNWEL-188

Green Class Submeter with Dual Protocols and CO2 Footprint Monitoring

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The E-Mon Class 5000 Green Net meter is a 3-phase meter with communications. The device is used to monitor electric power usage of individual loads after the utility meter and store kW and kVAR data for automatic meter reading.

Specification

  • Advanced 4-line display
  • 0-2 volt output split-core current sensors allow for enhanced safety & accurate remote mounting of sensors up to 500 feet from the meter without power interruption (optional solid-core sensors available)
  • Onboard installation diagnostics and verification system.
  • Two external meter inputs (water, gas, etc.) (Channels 5 & 6)
  • Phase loss alarm (N.O. Contact)
  • Built-in RS-485 communication capability supports up to 52 Class 3200, 3400, 5000, and/or IDR interval recorders (not to exceed 52 devices/channel)
  • Cabling can either be daisy-chain or star configuration, 3-cond., 18-22 AWG, up to 4,000 cable feet total per channel
  • Communications include built-in RS-485 & Ethernet, and an optional Telephone Modem
  • Protocols - EZ7, BACnet MS/TP, Modbus RTU - BACnet IP, Modbus TCP/IP, & LonWorks TP/FT-10
  • Records kWh and kVARh delivered, kWh and kVARh received in first four channels. Data is stored in 15-minute intervals for up to 72 days or 5-minute intervals for up to 24 days. Maintains data in a first-in, first-out format.
  • Compatible with E-Mon Energy software via EZ7 protocol for automatic meter reading, energy billing, and profiling.
  • The meter is designed for use on both 3-phase, 3-wire (delta) and 3-phase, 4-wire (wye) circuits (includes 3 split-core current sensors)
  • An optional single-phase, 3-wire configuration is available. (includes 2 split core current sensors.)
  • Green JIC steel enclosure with padlocking hasp & mounting flanges for indoor installation with one 1 1/16” KO (3/4” cond.) on the bottom of the enclosure

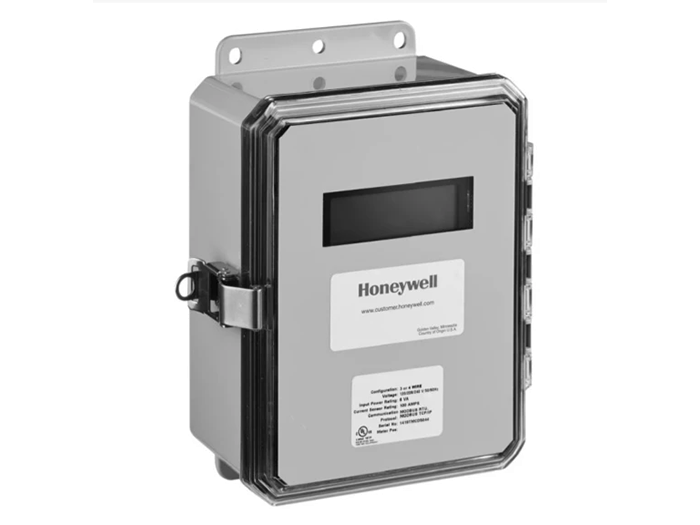

  • Optional gray NEMA 4X polycarbonate enclosure available with padlocking hasp & mounting flanges for indoor/outdoor installation (stand-alone) with one 1 1/16” KO on the bottom of the enclosure
