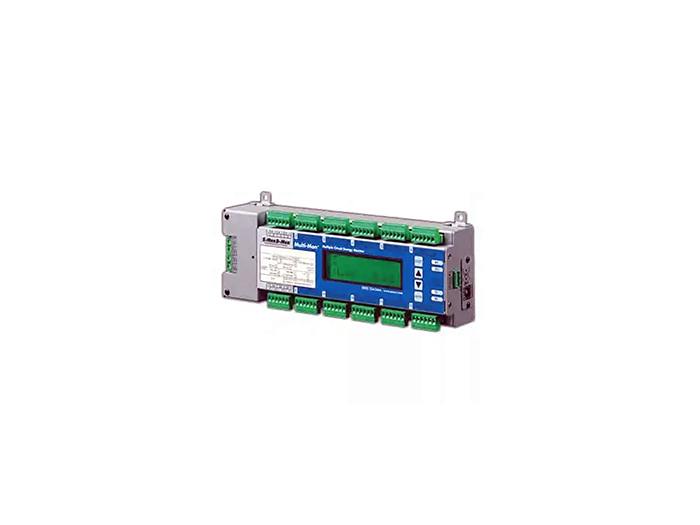

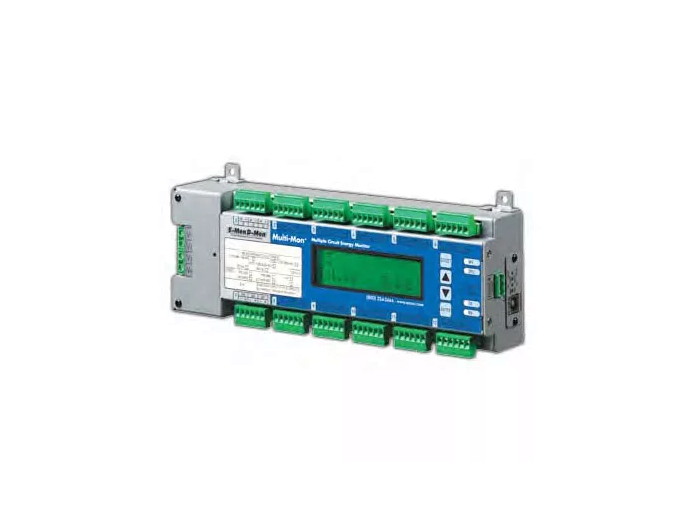

Honeywell E-Mon™ Multi-Mon Branch Circuit RS485 IP Smart Meter

  • NG # 01172-HW-HNWEL-198

A sophisticated energy monitoring system with multiple branches that captures detailed energy intelligence data. Designed for tenant billing, cost allocation, and effective energy management.

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Multi-Mon is a multiple branch circuit energy monitor that collects granular energy intelligence data for tenant billing, cost allocation and energy management. The device can accommodate up to 36 submetering points, giving total flexibility for configuration of up to 36 singlephase, 18 two-phase, 12 three-phase or any combination thereof. The Multi-Mon is ideal for submetering applications in apartment buildings, multi-tenant commercial buildings, institutions, data centers and more.

Specification

  • Multi-Mon is a multi-phase, multi-channel, multi-function Ampere/Volt demand meter suitable for use in single-phase and three-phase applications
  • Multi-channel submetering - Up to 36 single-phase, 18 two-phase, or 12 threephase submeters in a single, compact device. Any combination of single-, two-, and/or three-phase loads can be monitored up to a total of 36 current inputs
  • 2-row, 16-character backlit LCD display for easy set-up and programming
  • Data recorders; programmable periodical data logs separate for each submetered point. Embedded programmable controller (4 control setpoints, programmable thresholds, and delays) separate for each metered point. Event recorder for logging internal diagnostic events and setpoint operations
  • Time-Of-Use, 4 energy/demand registers x 4 tariffs, 4 seasons x 4 types of days, 8 tariff changes per day, easy programmable tariff schedule
  • Compatible with E-Mon Energy software via EZ7 protocol for automatic meter reading, energy billing, and profiling
  • Supplied with Power Software for meter set up and power quality analysis (requires RS-485 key for communication)
  • Current sensors are available in both split & solid-core configurations for increased flexibility in installation. Current sensor leads can be extended up to 500 feet for remote installation. (Current sensors are ordered separately. See Multi-Mon current sensor spec for details.)
  • Communication options: Modbus RTU via RS-485 communication (standard) or Modbus TCP/IP via Ethernet (optional)
  • Easy field upgrading device firmware through any communication port.
  • Optionally available pre-installed inside a JIC steel enclosure with lockable window panel and 3-phase voltage terminal block. Dimensions: 9.06” H x 23.62” W x 6.1” D
  • Real-Time Clock storage upon loss of power: 24 Hours minimum (1 Week typical.)
  • 60 Hz operation
  • Self-power supply: 3-phase and neutral fed from the metered voltage
