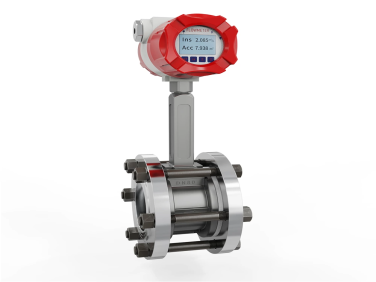

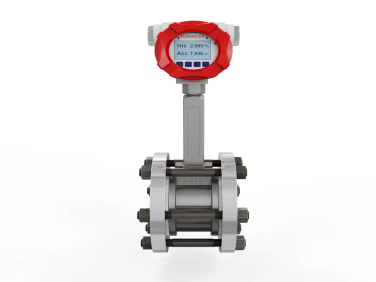

Supmea SUP-LUGB Vortex flowmeter wafer installation

  • NG # 03795-HW-SUPMEA-010

A fluid flowing with a certain velocity and passing a fixed obstruction generates vortices. The generation of vortices is known as Karman’s Vortices.The frequency of vortex shedding is a direct linear function of fluid velocity and frequency depends upon the shape and face width of bluff body.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

SUP-LUGB Vortex flowmeter work on the principle of generated vortex and relation between vortex and flow by theory of Karman and Strouhal, which specialize in measurement of steam, gas and liquid of lower viscosity.

Specification

 Product Vortex flowmeter wafer installation
 Model SUP-LUGB
 Diameter nominal DN15~DN300
 Installation Wafer connection: DN15-DN300(priority PN2.5MPa)
 Accuracy 1.5%, 1.0%
 Range Ratio Gas density:1.2kg/m3, Range ratio: 8:1
 Medium Temperature -20°C ~ +150°C、-20°C ~ +260°C、-20°C ~ +300°C
 Output signal 4-20mA
 Frequency RS485 communication (Modbus RTU)
 Power supply 24VDC±5%  Li battery (3.6 VDC)
 Ingress protection IP65
 Body Materials Stainless shell
 Display 128*64 dot matrix LCD
