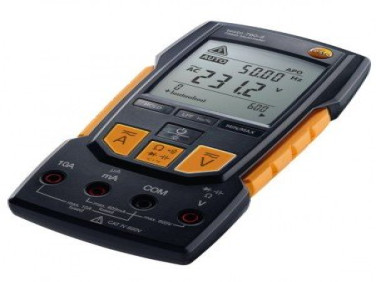

Testo 760-1 Digital Multimeter with Capacitance & Auto Setup

  • NG # 01594-HW-TESTO-042

  • MF # 0590 7601

Testo's exclusive auto-test setup enables the user to simply turn on the unit, connect the leads, and begin measuring. The Testo 760 Digital Multimeter detects the lead connection and prevents switching from V to A or A to V if leads are not in proper socket. This prevents accidentally blowing the meter's fuse because of incorrect connections.

Manufactured By :
Testo
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The function and range settings are always correct because the measurement parameters are detected and set automatically. Three easy-to-read buttons replace the traditional rotary switch when selecting manual test functions.

Specification

Basic accuracy0.8 %
AC/DC voltage measuring range0.1 mV to 600 V
AC/DC current measuring range1 mA to 10 A
Resistance range0.1 to 40 MΩ
Frequency range0.001 Hz to 500 kHz
Capacitance range0.001 nF to 100 µF
Display (Dual Readout)4,000 Counts
Safety categoryCAT III 600 V
Continuity Testing<30 Ω
Diode Test2.5 V
Protection classIP 64
Operating temperature14 to 122 °F (-10 to +50 °C)
Storage temperature-5 to 140 °F (-15 to +60 °C)
Dimensions6.6 x 3.3 x 1.77in. (167 x 84 x 45 mm)
Weight0.73 lbs (330 g)
