Allen Bradley Guardmaster 440N Series Magnetic Non-Contact Safety Switch, 24V dc, Stainless Steel Housing, NC, 2m Cable

  • NG # 02723-HW-ALBR-062

  • MF # 440N-G02156

Manufactured By :
Allen Bradley
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

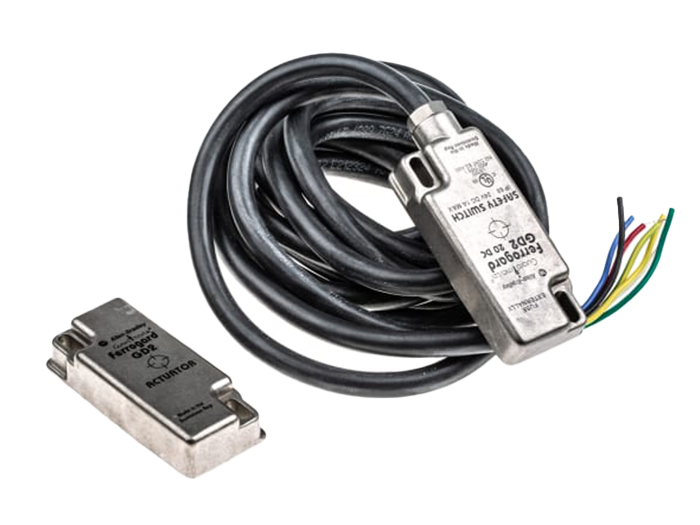

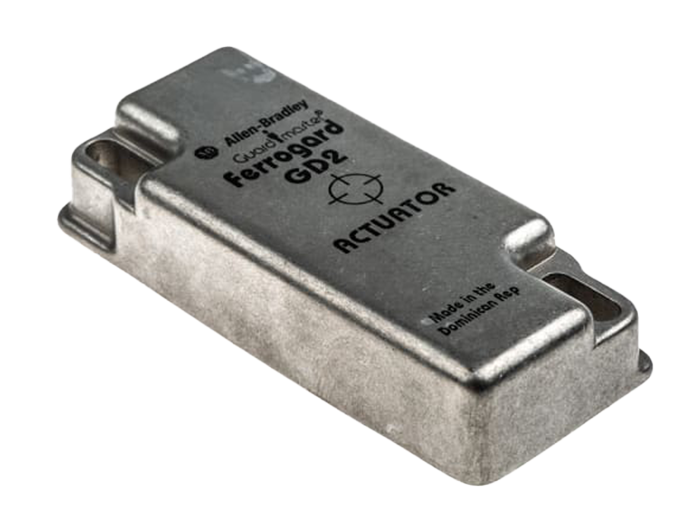

Allen Bradley Guardmaster 440N-G02156 Ferrogard Magnetic Non-Contact Safety Switch


Give your machine guard door a safety upgrade with the Ferrogard 440N-G02156 Magnetic safety switch, 24 V dc in stainless steel housing, by Allen Bradley Guardmaster. This switch ensures that power to machinery is cut off when the guard door or gate is opened and keeps the power supply isolated until the guard is closed again, preventing personnel from accessing a hazardous area and reducing risk of injury.


This safety switch is expertly designed to combine the reliability offered by non-contact switches with a high tolerance to door misalignment, to give you superior stability and security. It is also resilient against inadvertent impacts due to its robust stainless-steel housing, and the slim housing makes it ideal for narrow mounting areas. It has an environmental protection rating of IP67 (NEMA 6P), which makes it highly suitable for use in wet environments and industrial applications as it is fully dust-tight and durable against temporary immersion in water. The safety contact features internal non-resettable overload protection. These Ferrogard switches work by opening the NC safety contacts when the magnetic actuator is removed from the switch due to the release of the machine guard, which isolates machine power.

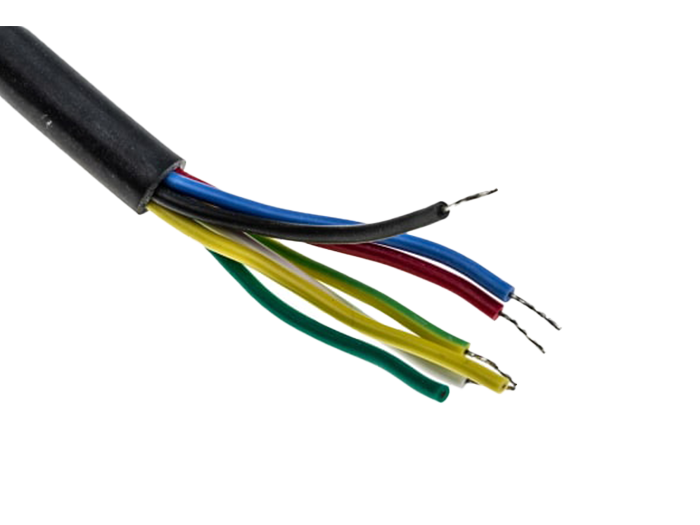

This Ferrogard magnetic non-contact switch has a supply voltage rating of 24V dc at 1A current, FRS14 housings and a 2m cable. It has 1 NC (Normally Closed) safety contact and 1 NC auxiliary contact. It has a switching distance of 12mm (Make) to 23mm (Break) and an operating temperature of -10°C to +65°C.


Features and Benefits:


• Non-contact actuation – long lasting due to less wear-and-tear, simple set-up
• Two sensing faces ensures greater flexibility of mounting options
• Large sensing field provides improved tolerance to safety guard misalignment
• Environmentally sealed to IP67 – no ingress of dust and can withstand temporary immersion in water
• Slim housings to suit narrow mounting areas and made of tough stainless steel for greater durability


Certifications:


EN954-1
IP67 rated
ISO13849-1
IEC/EN60204-1
NFPA79
EN1088
ISO14119
ANSI B11.19
AS4024.1
CE certified
UL listed


Note: This device can be used with Guardlink, a new safety linking technology from Allen Bradley GuardMaster. Guardlink simplifies and reduces the connection time of the safety system, whilst providing real-time diagnostic information over an Ethernet IP. This makes it simple to identify the location of the device that has tripped the system, thus reducing downtime and improving the machines overall efficiency. For more details, please go to the Guardlink brochure.


What are the advantages of non-contact safety switches?


Non-contact safety switches are highly suited for sliding, hinge, or lift-off machine guard doors, are long lasting, and offer simple setup and alignment which helps to reduce installation costs. The risk of debris contamination is decreased due to no contact between the sensor and actuator. They are fairly tamper-proof and require minimal maintenance. As such, they are often used in industrial applications, such as machine guarding in factory production lines.


The Allen Bradley Guardmaster range of machine safety products offers flexible, cost-effective solutions for every application to provide essential protection for your equipment and personnel, and enhance productivity in the workplace.

Specification

Supply Voltage24V dc
Safety ContactsNC
Housing MaterialStainless Steel
Connection Type2m Cable
Actuator TypeMagnetic
Auxiliary ContactsNO
Sensor PrincipleMagnetic
Safety Category1
Actuator IncludedYes
RangeFerrogard
Series440N
Switching Distance12 mm
IP RatingIP67
Length90mm
Width19mm
Depth16mm
