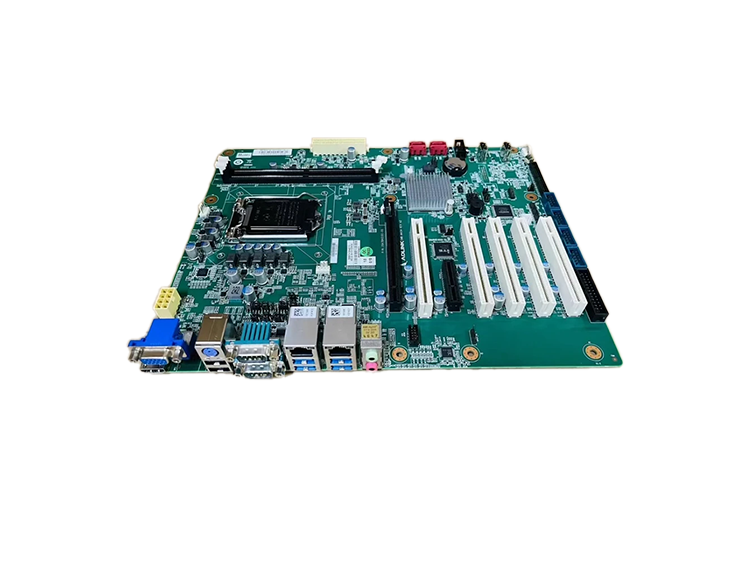

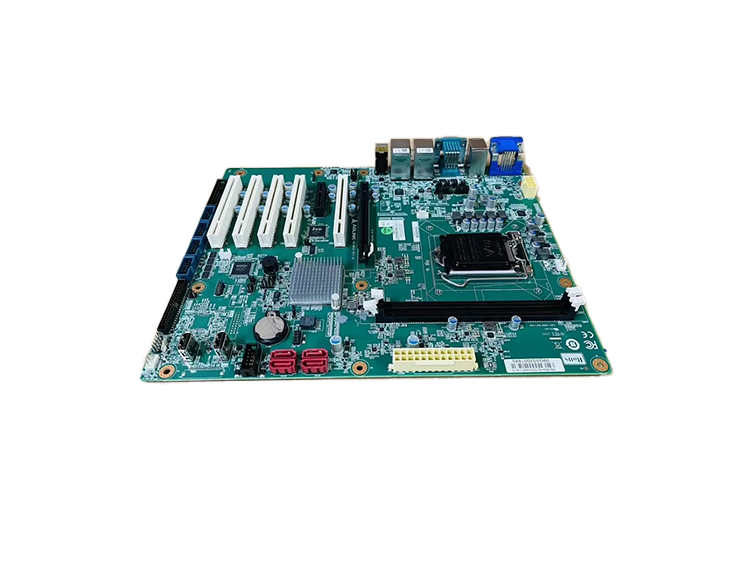

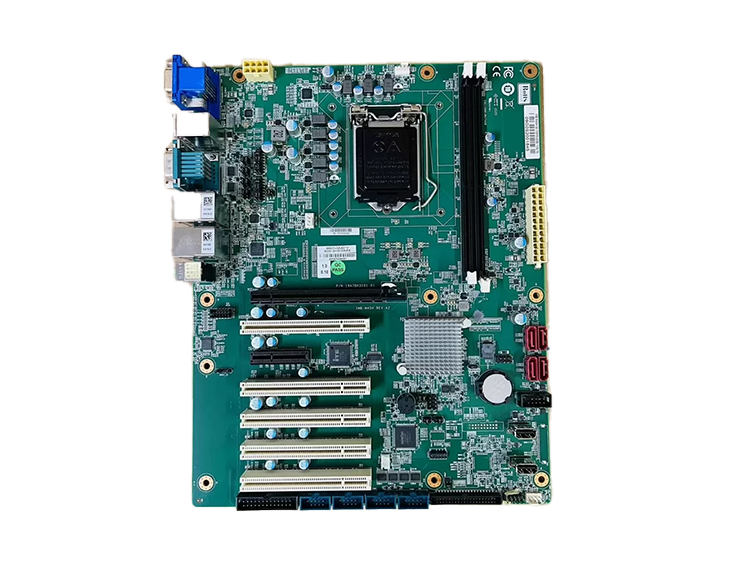

ADLINK ATX Motherboards IMB-M45H

  • NG # 00100-HW-ADL-030

Industrial ATX Motherboard with 8th/9th Gen Intel® Core™ i9/i7/i5/i3 Processor

Manufactured By :
ADLINK Technology
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

ADLINK IMB-M45H ATX industrial motherboard supports the 8th/9th Generation Intel Core i9/i7/i5/i3 processor in the LGA1151 package, and the Intel H310 chipset. This model supports ubiquitous high-speed data transfer interfaces such as PCIe Gen3, USB 3.1 Gen1 and SATA 6 Gb/s (SATA III), with dual-channel DDR4 2400/2666 MHz memory up to 64 GB in two DIMM slots. Delivering a scalable high performance platform for diverse applications like motion controllers, the IMB-M45H supports 1xPCIe Gen3 x16 lanes, 1xPCIe Gen2 x4 lanes and 5xPCI for a wide range of user configurations. On top of that, ADLINK’s advanced rugged I/O and power design ensures exceptional compatibility, long-term stability, and reliability, while meeting the requirements of EN55032/55035 Class B standards.

Specification

Specification

Vendor Name
ADLink
System Architecture Form Factor
ATX
СPU Generation/Family
Coffee Lake
Processor Supported
Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium, Intel Xeon E-21XX, Intel Xeon E-22XX
Socket
LGA1151
Chipset
Intel C246
Memory Type
DDR4 2400, DDR4 2666
Socket Type
4xDDR4 DIMM 288pin
Maximum Memory
128 GB
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
USB
14, USB 2.0: 7, USB 3.1: 7
GPIO
Yes
SATA 3 Channels
6
Audio Controller
Realtek ALC892
Audio Output
Line-out
Internal Ports:
LPT, USB 2.0, 24-pin ATX, 4x10-pin RS-232, 6x4-pin USB 2.0, 6xSATA, GPIO, 19-pin USB 3.0, USB 3.0, 8-pin ATX
Connectors:
2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port
Temperature:
0 ... 60 °C
Input Voltage DC:
12 ... 12 V
