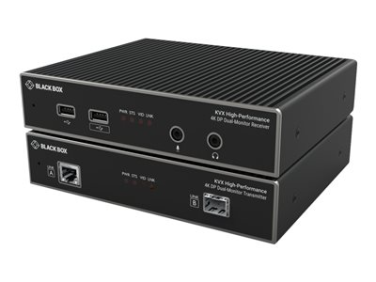

Black Box KVXHP-400 - KVM / audio / serial / USB extender - RS-232, USB 2.0, 10 GigE, DisplayPort, 5 GigE

  • NG # 03475-HW-BLACK-008

  • MF # KVXHP-400

Manufactured By :
Black Box
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

True Plug and play High-Performance point-to-point KVM extension. Using DisplayPort 1.2 (Multi-Stream Transport) Technology, KVXHP supports up to four external displays transmitted over a single cable. HD video, USB 2.0 (HID), and audio are all transmitted over a single CATx or Fiber cable. Whether your requirements are CATx or fiber, KVXHP is equipped to handle both interfaces providing a single solution for all use cases.


KVXHP supports four external MST enabled DisplayPort monitors with resolutions up to 1920x1200 @ 60Hz using 8 bits per color and 4:4:4 chroma sampling, provides high-quality audio, EDID management, and Emulated USB 2.0.

Specification

General
Device Type
KVM / audio / serial / USB extender
Form Factor
Desktop
Networking
Data Link Protocol
DisplayPort, 10GbE, 5GbE, RS-232, USB 2.0
Keyboard / Mouse Interface
USB
Max Resolution
4096 x 2160 @ 60 Hz
Max Transfer Distance
2.5 miles
Dimensions & Weight
Width
7.3 in
Depth
5.8 in
Height
1.5 in
Weight
2.84 lbs
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
0 - 80%
