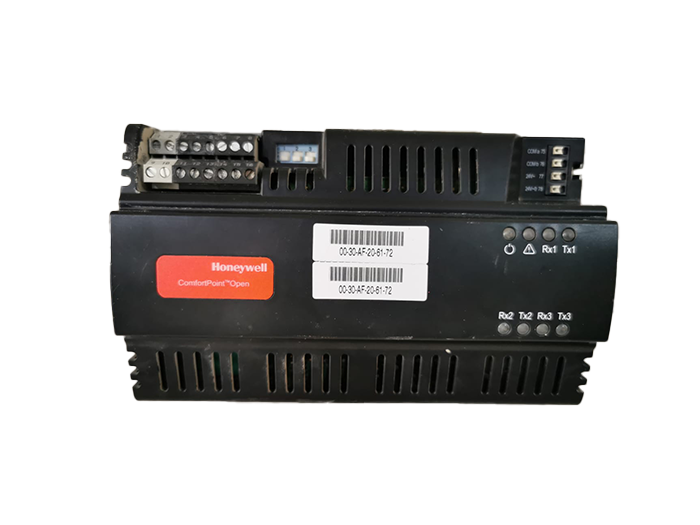

Honeywell CPO Digital I/O Controller

  • NG # 00926-HW-HNWEL-046

CPO-DIO modules are supported for all CPO plant controllers.

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

CPO-DIO modules are supported for all CPO plant controllers. They have outstanding performance with 32-bit technology and built-in real time clock. The CPO-DIO is based on B-AAC BACnet profile, it connects to RS-485 CP-IO bus of supported plant controllers and is fully integrated with ComfortPoint Open Manager (CPOM) as IO device and BACnet controller integrated under plant controller (CPO-PC-6A, CP-IPC). It is fully integrated with Enterprise Building Integrator (EBI) for the existing EBI system with ComfortPoint Open (CPO) subsystems, the DIOs are considered as BACnet controller and also as IO devices. It is flexible and easy configuration with ComfortPoint Open Studio and suitable for smoke control systems (UUKL applications).

Specification

Specification

  • Onboard Inputs and Outputs - CPO-DIO comes with 8 UI, 8 DI and 16 DO (triacs) I/O which can be used as an expansion I/O board by connecting it to the supported plant controllers on the same RS485 bus.
  • Scalable and Powerful - Designed with 32-bit processor and built in Real Time Clock, the system can be expanded from a small to a large Integrated Building Management System.
  • Programming and Configuration - ComfortPoint Open Studio enables users to add/delete/modify I/O assignments when used as an expansion I/O board.
  • Flexible mounting options - DIN-rail / Wall mounting.
  • Automatic MAC addressing - Automatically assigns own unique MAC address.

CATALOGS

CPO Digital I/O Controller Data Sheet
