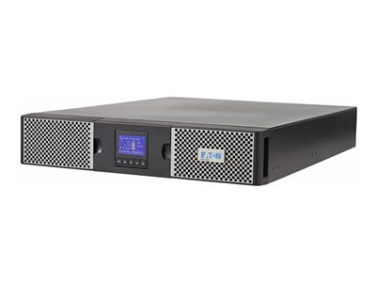

Eaton 9PX 9PX1500RTN - UPS - 1350 Watt - 1500 VA

  • NG # 03460-HW-Eaton-014

  • MF # 9PX1500RTN

Manufactured By :
Eaton
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Delivering premium backup power and scalable battery runtimes, the Eaton 9PX UPS is the ideal solution for rack and stand-alone installations in harsh electrical and critical applications. With an advanced LCD screen interface and robust power management software, managing a UPS has never been easier with the 9PX-even in virtualized environments.

Specification

General
Device Type
UPS - rack-mountable / external
Height (Rack Units)
2U
Color
Black, silver
Power Device
UPS Technology
On-line
Input Voltage
AC 100/110/120/125 V
Input Voltage Range
AC 100 - 144 / 60 - 144 V
Frequency Required
50/60 Hz
Input Connectors
1 x power NEMA 5-15
Power Output Connectors Details
8 x power NEMA 5-15
Output Voltage
AC 100/110/120/125 V ± 1%
Power Capacity
1350 Watt / 1500 VA
Efficiency
90%
Power Factor (PF)
0.99
Total Harmonic Distortion (THD)
3 %

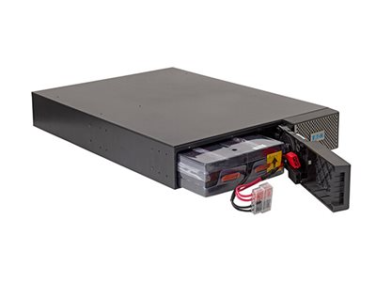

Battery
Type
Expandable
Technology
Lead acid
Features
Maintenance free, sealed
Networking
Remote Management Interface
Ethernet, RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (RS-232) - RJ-45 ¦ 1 x USB ¦ 1 x management (Ethernet) - RJ-45
Expansion Slots
1 (total) / 0 (free) x expansion slot
Miscellaneous
Included Accessories

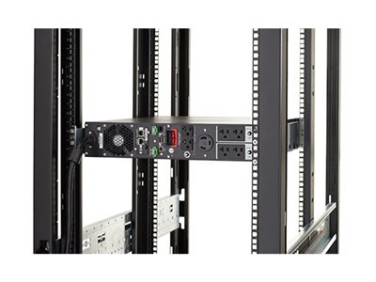

Tower stand, 4-post rail kit
Cables Included
Serial cable - external - 6 ft ¦ USB cable - external ¦ Power cable - integrated - 8 ft
Features
Advance Battery Management (ABM), LCD display, cold-start function, automatic self-test, Remote Emergency Power Off (REPO)
Compliant Standards
ANSI C62.41, CISPR 22, IEC 62040-2, RoHS, VCCI Class B, FCC Part 15 Class B
Software / System Requirements
Software Included
Eaton Intelligent Power Software Suite
Sustainability Information
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Sound Emission
40 dB
Dimensions & Weight
Width
17.3 in
Depth
17.7 in
Height
3.4 in
Weight
42.55 lbs
Compatibility Information
Designed For
P/N: 744-A3297, 9PXEBM48RT
