Ecom Intrinsically Safe Sensor-Temperature Meter - Ex-Pt 720 (Discontinued)

  • NG # 00438-HW-ECOM-039

Gain accurate data using the intrinsically safe Ex-PT 720 sensor-temperature measuring unit, compatible with a range of standard probes.

Manufactured By :
ecom
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

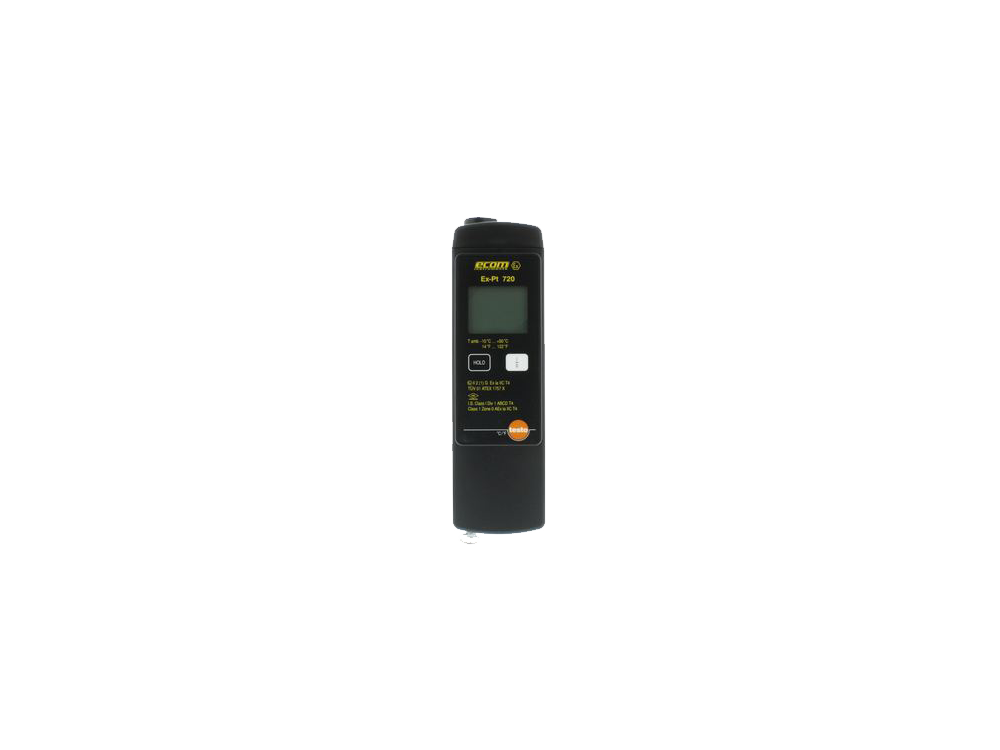

The large clearly-readable display enable a smooth reading of the measured value, which can be displayed in °C or °F. With the HOLD-function the measured value can be "frozen" and inscribed in a diagram. An automatic switch-off prevents for unnecessary battery discharge.

Specification


MEASURING SENSOR: PT100 / 4 wire
MEASUREMENT RANGE (GENERAL): -50 °C … +400 °C
ACCURACY
(±1 DIGIT):		 -50 °C … +199.9 °C: ±0.2 °C
+200 °C … +400 °C: ±0.2% of reading
RESOLUTION: -50 °C … +199.9 °C: 0.1 °C
+200 °C … +400 °C: 1 °C
SYSTEM ACCURACY WITH
IMMERSION/INSERTION SENSOR



(±1 DIGIT):

 -50 °C … +100 °C: ±0.6 °C
+100 °C … +400 °C: ±0.5% of reading

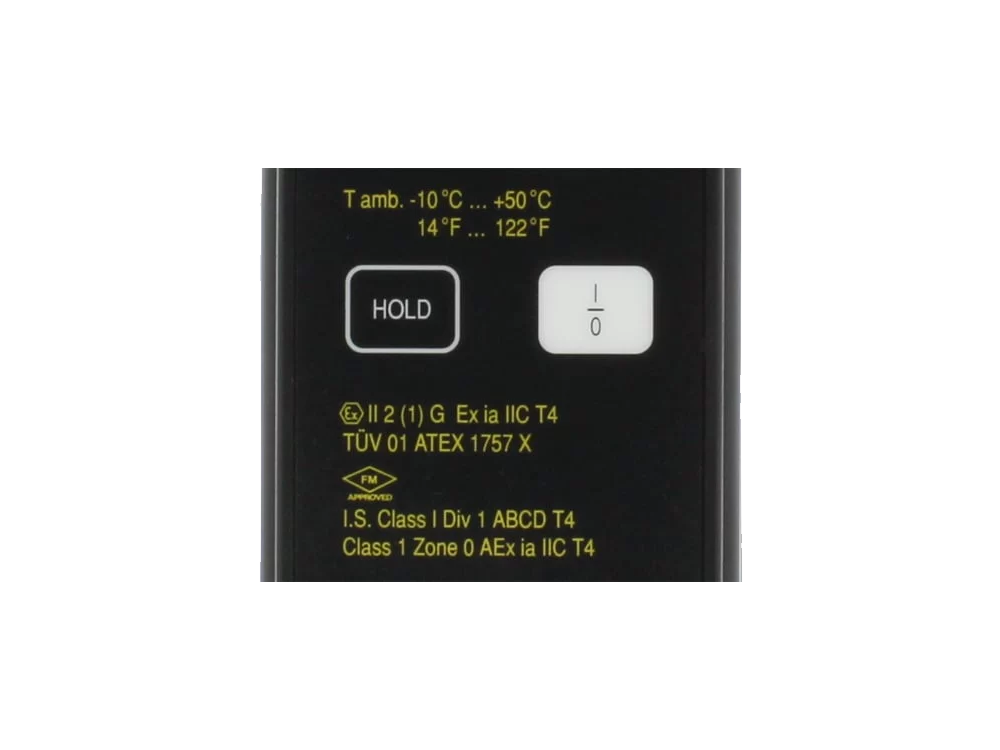

AMBIENT TEMPERATURE -10 °C … +50 °C (+14 °F … +122 °F)
STORAGE TEMPERATURE -20 °C … +70 °C (-4 °F … +158 °F)
OPERATING TIME approx. 100 h
POWER SUPPLY 1x 6LR61 according to IEC (type approved)

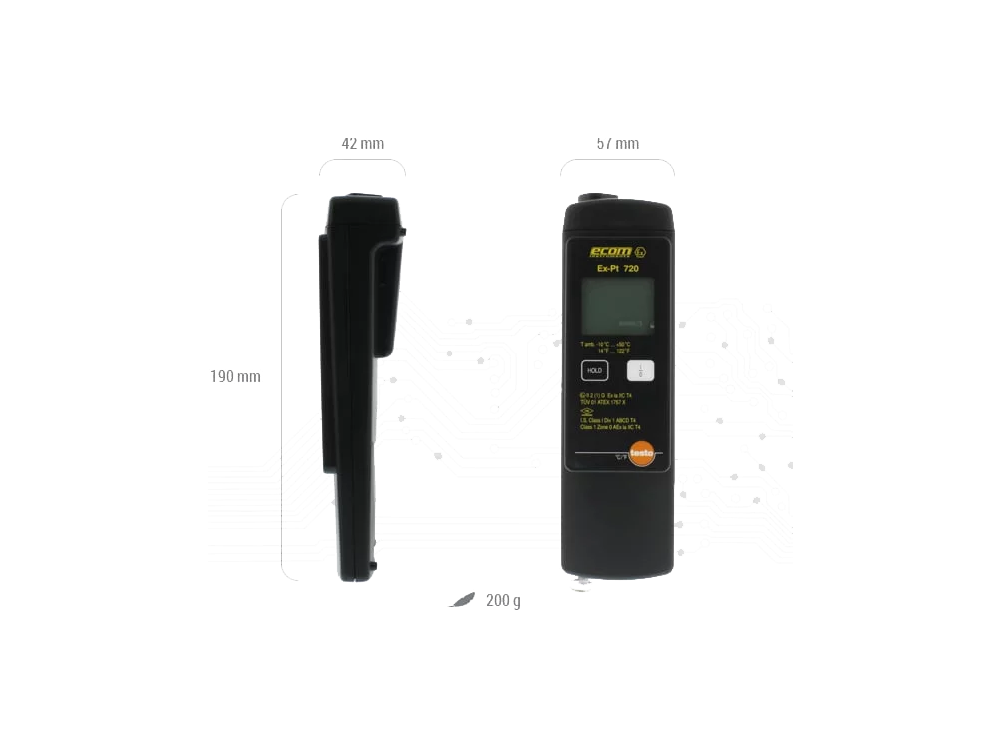

DIMENSIONS 190 mm x 57 mm x 42 mm
(~ 7.5" x 2.2" x 1.7")
WEIGHT approx. 200 g (~ 7.1 oz), with battery
PROTECTION RATING IP54



CATALOGS

Data Sheet
