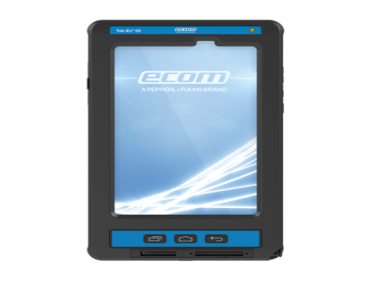

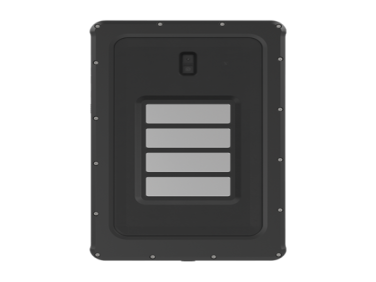

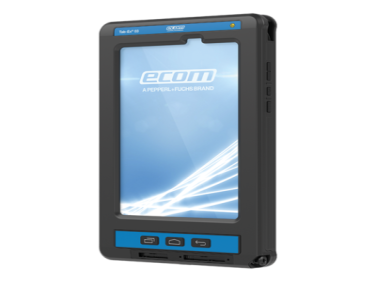

ECOM Tab-Ex® 03 DZ1 – Next Generation 8" (20.3 cm) Android™ ATEX Tablet for Zone 1/21 & Division 1

  • NG # 03331-HW-ECOM-046

The rugged, highly secure, Zone 1/21 & Division 1 rated intrinsically safe Android Tablet Tab-Ex® 03 DZ1 continues the success story of the 3rd generation 8" Tab-Ex® Series.

Manufactured By :
ecom
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Tab-Ex® 03 DZ1 comes in a sleek design with a new high-performance operating system that powers the tablet with industry leading performance in hazardous areas. The Samsung DeX function turns the compact tablet into a full desktop computer, and additional accessories, peripherals, digital products, and services ensure superior flexibility.

Specification

HARDWARE


PROCESSOR: Octa-core, 4 x 2.7 GHz + 4 x 1.7 GHz Exynos 9810

RAM: 4 GB

CAMERA (Optional): Main camera13 MP Autofocus

Front camera: 5 MP

Video recording resolution: UHD 4K (3840 x 2160 Pixel) @ 30 fps

INTERNAL DATA MEMORY: 64 GB (Free available memory 48.6 GB)

OPTIONAL DATA MEMORY (Optional): microSD (up to 1024 GB)

512 GB installed

SENSORS: Acceleration sensor, ambient light sensor, gyroscope, geomagnetic sensor, Hall sensor


INDICATORS/OPERATING MEANS


DISPLAY: Can be operated while wearing gloves

Touchscreen technology: Capacitive multitouch

Type: TFT, LCD

Screen diagonal: 20.31 cm

Aspect ratio:16:10

Resolution: 1920 x 1200 (WUXGA)

Brightness: 480 cd/m2 (nit)

Colors: 16 Mio.


ELECTRICAL SPECIFICATIONS


BATTERY TYPE: Li-Ion 18.87WH, 3.8V, 5050 mAh (typical)

OPERATING DURATION: Up to 11 h


COMMUNICATION


MOBILE STANDAR (Optional):

2G GSM: 850 MHz, GSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz

3G UMTS band: B1 (2100), B2 (1900), B4 (AWS), B5 (850), B8 (900)

4G LTE FDD: B1 (2100), B2 (1900), B3 (1800), B4 (AWS), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B17 (700), B20 (800), B28 (700), B66 (AWS-3)

TDD LTE: B38 (2600), B40 (2300), B41 (2500)

WLAN: 802.11 a/b/g/n/AC/ax 2.4 G+5 GHz, HE80, MIMO, 1024 QAM

BLUETOOTH: Bluetooth® 5.0

GPS SENSOR: GPS, Glonass, Beidou, Galileo

USB: USB 3.1 Gen. 1

CONNECTIONS: Wi-Fi Direct, NFC, ANT+

SIM CARD: 1x Nano SIM (4FF) (optional)


SOFTWARE


OPERATING SYSTEM: Android™

SAFETY: Samsung KNOX 3.x


AMBIENT CONDITIONS


AMBIENT TEMPERATURE: -20 ... 55 °C (-4 ... 131 °F)


MECHANICAL SPECIFICATIONS


DEGREE OF PROTECTION: IP64 according to EN/IEC 60079-0 (ATEX/IECEx)

MASS: 1100 g


DIMENSIONS

W x H x D161.5 mm x 262.75 mm x 25.75 mm


FURTHER APPROVALS: MIL-STD-810H
