NG # 00478-HW-Fluke-041

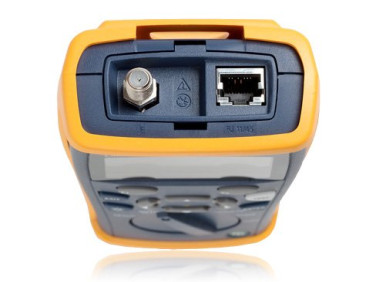

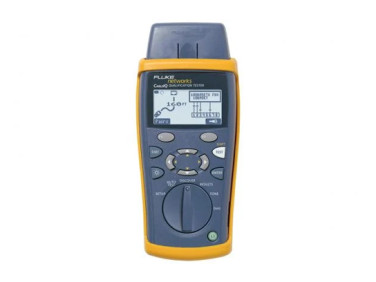

CableIQ qualification tester is the first cabling bandwidth tester for network technicians. This Ethernet network cable testergives even the most novice tech the vision to see what speeds existing cabling can support, quickly isolate cabling from network problems, and discover what is at the far end of any cable.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteCableIQ qualification tester's powerful network troubleshooting capability and intuitive interface enable your frontline technicians to identify and troubleshoot a wider range of problems within your network infrastructure. Is the port active? Are the duplex settings matched? Is it a network problem or a Ethernet cable problem? Can the Ethernet cable support the required network bandwidth? CableIQ network analyzer is the only Ethernet cable tester that can answer all these questions before trouble tickets are escalated to the next level reducing problem escalation by up to 30%.
| Cable types supported | UTP, STP, FTP, SSTP, RG6, RG59, audio and security |
| Qualification autotests | 1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 1394b S100, TELCO, Wiremap only, Coax |
| Supported tests | Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection. |
| Wiremap | Can detect single wire faults and supports MultiMap mode with up to seven remote office identifiers. Draws proportional wire length to breaks. Detects split pairs. |
| Find fault | Measures crosstalk and impedance and compares against appropriate limits based on qualification test selected. Detects location of large point sources as well as distributed sources in the cabling if they are sufficient to disqualify the application |
| Results storage | Up to 250 qualification test results |
| Power | Battery type: 4 AA (NEDA 15A, IEC LR6) alkaline batteries |
| Battery life | 20 hours of typical use, without backlight |
| Other battery types supported | 4AA photo lithium, NIHM, NICAD |
| Dimensions and weight | 7in x 3.5in x 1.75in (17.8cm x 8.9cm x 4.5cm) 1.2 lb (0.55 kg) |
Fluke CableIQ™ Qualification Tester Data Sheet
Fluke CableIQ™ Qualification Tester Manual
