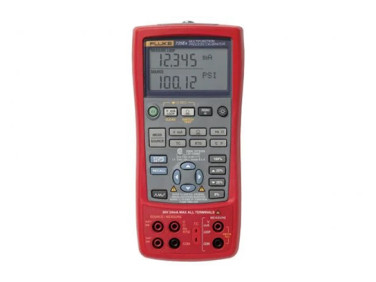

Fluke Intrinsically Safe Calibrator - 725Ex

  • NG # 00451-HW-Fluke-012

The 725Ex Intrinsically Safe Multifunction Process Calibrator: A Powerful and User-Friendly Solution for Calibration. Paired with the 700PEx Pressure Modules, this calibrator excels in servicing a wide range of process instruments within hazardous areas, delivering unparalleled ease of use and robust performance.

Manufactured By :
fluke
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The 725EX with any of the eight Fluke 750PEx Pressure Modules (sold separately), and you’ll be able to calibrate almost any process instrument likely to need service in an area where explosive gasses may be present.

The 725EX sources and measures almost all process parameters including mA, volts, temperature (RTDs and thermocouples), frequency, ohms, and pressure, using optional pressure modules. Its split display lets you view input and output values simultaneously to calibrate transmitters. For valve and I/P tests, you can source mA while measuring pressure. The 725Ex has auto-stepping and auto-ramping for remote testing, plus 25% stepping for fast linearity tests.

Specification

Specification

HUMIDITY95% (+10 °C … +30 °C)
(~ +50 °F … +86 °F)
75% (+30 °C … +40 °C)
(~ +86 °F … +104 °F)
45% (+40 °C … +50 °C)
(~ +104 °F … +122 °F)
35% (+50 °C … +55 °C)
(~ +122 °F … +131 °F)
AMBIENT TEMPERATURE-10 °C … +55 °C (14 °F … +131 °F)
STORAGE TEMPERATURE-40 °C … +71 °C (-40 °F … +160 °F)
OPERATING TIMEapprox. 25 hours
POWER SUPPLY4x AA (type approved)
DIMENSIONS200 mm x 96 mm x 47 mm
(~ 7.9" x 3.8" x 1.9")
WEIGHTapprox. 650 g (~ 22.9 oz)

CATALOGS

Fluke Intrinsically Safe Calibrator - 725Ex Data Sheet
