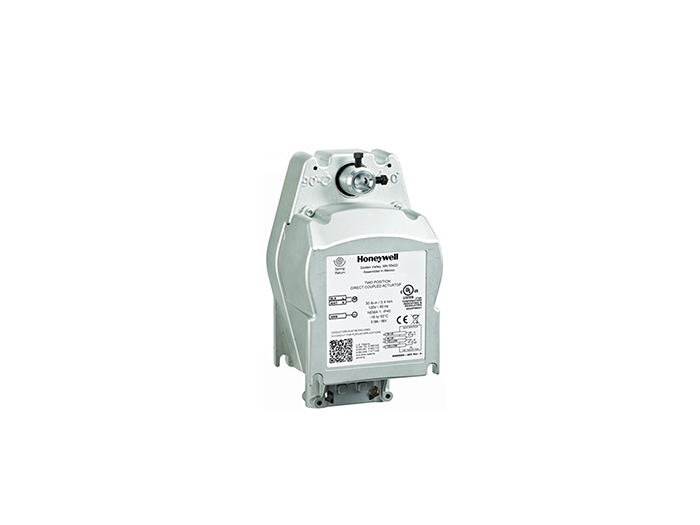

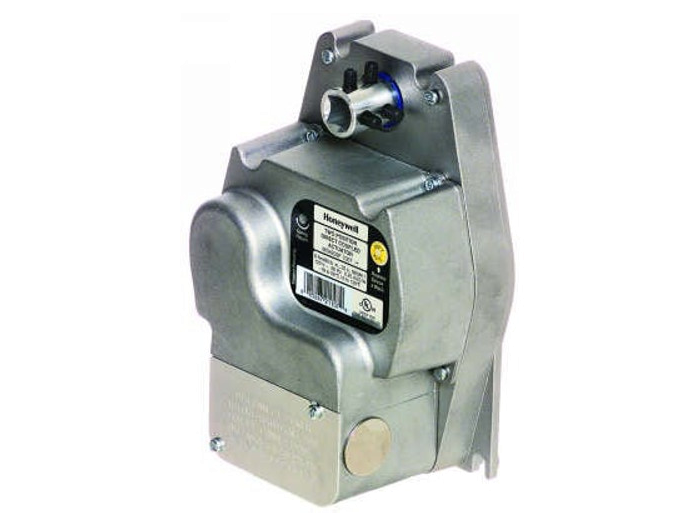

Honeywell MSxx04F 30 Lb-In. And MSxx09F 80 Lb-In. Fire And Smoke Damper Actuators

  • NG # 00971-HW-HNWEL-091

The MS4104, MS4109, MS4604, MS4609, MS8104 and MS8109 are spring return direct coupled actuators (DCA) for Fire and Smoke dampers.

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The MS4104, MS4109, MS4604, MS4609, MS8104 and MS8109 Fast-Acting, Two-Position Actuators are spring return direct coupled actuators (DCA) for Fire and Smoke dampers (on/off control). The actuator accepts an on/off signal from a single-pole, single-throw (SPST) controller. Reversible mounting allows actuator to be used for either clockwise (cw) or counterclockwise (ccw) spring rotation

Specification

  • 30 lb-in. (3.4 Nm) or 80 lb-in. (9 Nm) minimum driving torque at 350°F (176°C)
  • Reversible mounting facilitates use in either clockwise (cw) or counterclockwise (ccw) spring rotation
  • Integral spring return ensures level of return torque
  • Fifteen-second spring return timing
  • No special cycling required during long-term holding
  • No audible noise during holding
  • Patent pending design eliminates need for limit switches to reduce power consumption
  • Ninety-five degree angle of rotation
  • Actuator holds rated torque at reduced power level
  • Die-cast aluminum housing
  • Housing design allows flush mounting to damper
  • Models available with SPST position-indicating switches (7°, 85° stroke).
