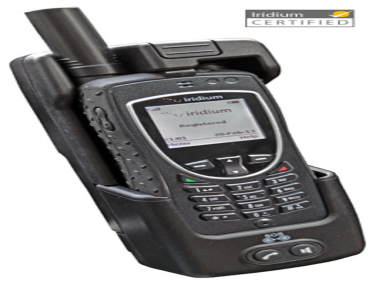

Iridium Extreme Office Docking Station with RJ-11 -For Extreme satellite phone

  • NG # 03221-HW-Iridium-020

  • MF # SATT-9575OD

Manufactured By :
Iridium
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Iridium EXTREME Office Docking Station allows advance use of Iridium Extreme satellite phones indoors. The docking station provides capability of connecting regular phones via RJ-11 or PBX, antenna cable feed and power supply from an electric outlet.

Specification

FEATURES:


  • Full duplex hands-free operation of Iridium Extreme phones
  • Support of GPS and Iridium location-based services
  • RJ-11 support: make satellite calls with regular phones or integrate into your PBX
  • Direct data pass through via mini-USB data port (no additional PC drivers needed)
  • Compatible with Iridium AxcessPoint Wi-Fi accessory and GMN xWA-102 Optimizer
  • Perfect voice reproduction and echo cancellation
  • Automatic adjustment to noise conditions
  • Emergency (SOS) alert button
  • Microphone mute feature
  • Two-mode operation: hands-free or private mode (via optional handset or RJ-11 telephone set)
  • 2.5mm (3/32") audio jack for a handset or earpiece
  • Charges phone battery
  • Two-year worldwide warranty


SPECIFICATIONS:


  • Operating temperature: -13...176 F (-25...80 C)
  • Input power: 10—16V DC, max 2A
  • Height: 7.5 in. (190 mm) - cradle
  • Width: 2.76 in. (70 mm) - cradle
  • Depth: 2.3 in. (57 mm) - cradle
  • Weight: 2 lbs (0.9 kg) - retail box
  • Compatibility: Iridium Extreme (9575)
