NG # 03769-HW-VERTIV-024

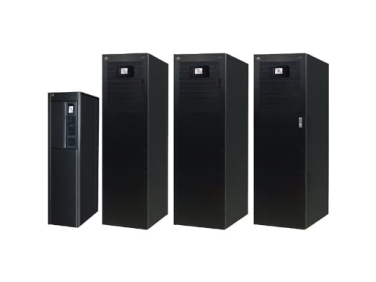

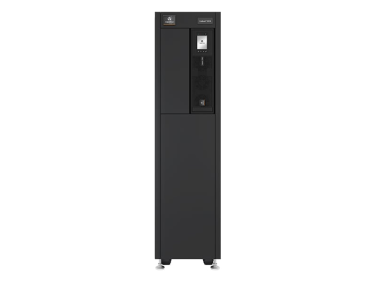

Compact design and improved performances. The new Liebert® EXS™ is a monolithic transformer-free UPS which brings exceptional features for mission-critical applications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteIts extraordinary double conversion efficiency up to 96.2% ensures remarkable operational cost savings, reducing both the Total Cost of Ownership (TCO) and the environmental impact.
| Flexibility | Single and three phase output configurations up to 60kVA Integrated parallel capability up to 4 units Common or distributed battery bank Internal and external battery configurations for optimized back up time management Casters for easy UPS repositioning |
| Output Configuration | Liebert EXS models up to 20 kVA can be configured on-site to deliver three (3/3) or single (3/1) phase output giving it the flexibility to adapt to changes in installation environments. |
| Integrated Autonomy | Liebert EXS provides an optimized integrated autonomy which results in back up times in a compact footprint. Its internal architecture is able to house up to four battery strings, further optimizing integrated autonomy and delivering the added advantage of virtually eliminating the need for an external battery cabinet. |
| Full Galvanic Isolation | The transformer may be connected to the input or to the output of the UPS providing: Full galvanic isolation for medical and other critical applications Installation with two independent input sources (with different neutrals) Installation in distribution without neutral |
| Parallel Ready | Liebert EXS can be connected with up to four units in parallel.A single unit can be upgraded to parallel operation via easy to modify software settings, allowing the system to be customized for the requested configuration. |
