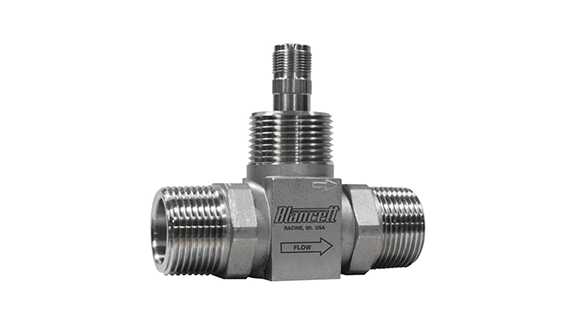

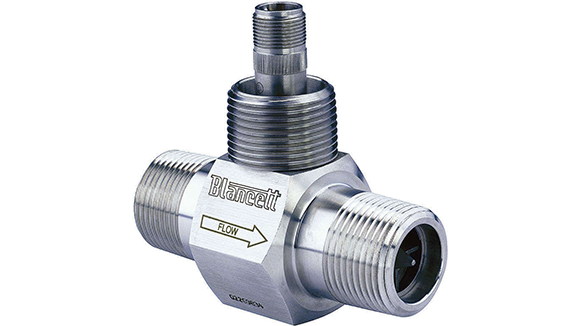

Model 1100 Turbine Flow Meter

  • NG # 0716-HW-BLA-001

The Blancett® Model 1100 Turbine flow meter is designed to withstand the demands of the most rigorous flow measurement applications, both on and off the oilfield.

Manufactured By :
Badger Meter
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Blancett 1100 turbine flow meter is designed to withstand the demands of the most rigorous flow measurement applications. It features a rugged 316 stainless steel housing and rotor support assemblies, CD4MCU stainless steel rotor, and abrasive-resistant tungsten carbide rotor shaft and journal bearings.

The Model 1100 maintains measurement accuracy and mechanical integrity in the corrosive and abrasive fluids commonly found in oil field water flood projects and many industrial applications. It is designed to operate with the model B2800 Flow Monitor and meets a wide range of measurement requirements, making it ideal for applications such as pipelines, production/injection fields, in-situ mining operations, offshore facilities, and other industrial applications.

This meter is simple to install and service. It operates in any orientation (horizontal to vertical) as long as the flow direction arrow is aligned in the same direction as the actual line flow. For optimum performance, the flow meter should be installed with a minimum of 10 diameters upstream straight pipe length and 5 diameters downstream straight pipe length.

Specification

  • Temperature Range
    -150...425 °F
  • Flow Range
    0.6...5000 gpm
  • Pressure Range
    Up to 5000 PSI
  • Accuracy
    ±1%

Other Badger Meter Products

Badgermeter B3100 Series Flow Monitor
Badger Meter Industrial Tools & Accessories 04137-HW-BM-015

Blancett 900 Series Positive Displacement Flow Meter
Badger Meter Industrial Tools & Accessories 0720-HW-BLA-005

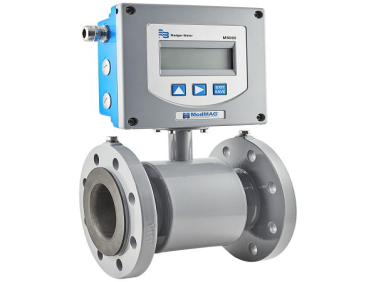

Badgermeter M5000 Electromagnetic Flow Meter
Badger Meter Industrial Tools & Accessories 04131-HW-BM-009

Badgermeter M4000 Electromagnetic Flow Meter
Badger Meter Industrial Tools & Accessories 04134-HW-BM-012

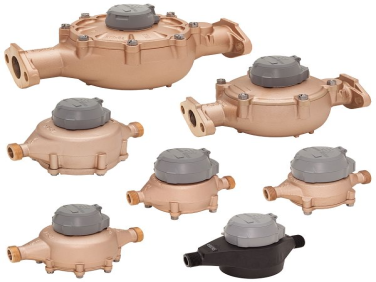

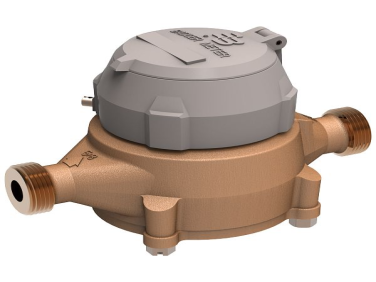

Badgermeter Disc Series Meters
Badger Meter Industrial Tools & Accessories 04135-HW-BM-013

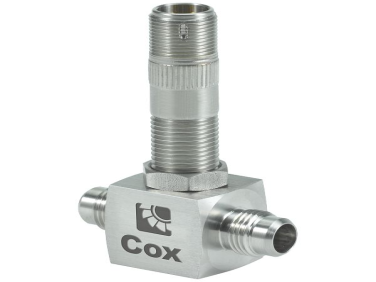

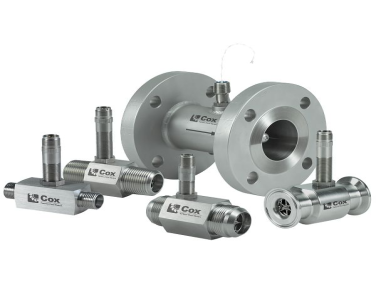

Badgermeter Cox Precision Turbine Meter
Badger Meter Industrial Tools & Accessories 04140-HW-BM-018

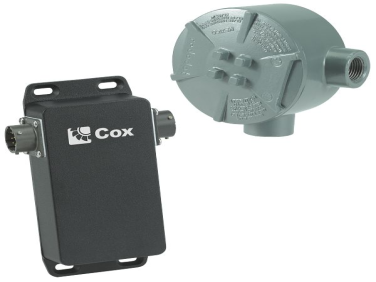

Badger Cox EC80 Flow Processor
Badger Meter Industrial Tools & Accessories 04143-HW-BM-023

Badger Cox Precision LoFlo Meter
Badger Meter Industrial Tools & Accessories 04142-HW-BM-020

Badger Cox IFC15 Flow Processor
Badger Meter Industrial Tools & Accessories 04144-HW-BM-024

Badgermeter Industrial Disc Series Meters
Badger Meter Industrial Tools & Accessories 04136-HW-BM-014

Badger Cox FC30 Flow Computer
Badger Meter Industrial Tools & Accessories 04146-HW-BM-026

QuikSert® In-Line Turbine Flow Meter
Badger Meter Industrial Tools & Accessories 0719-HW-BLA-004

Badgermeter M7600 Electromagnetic Flow Meter
Badger Meter Industrial Tools & Accessories 04132-HW-BM-010

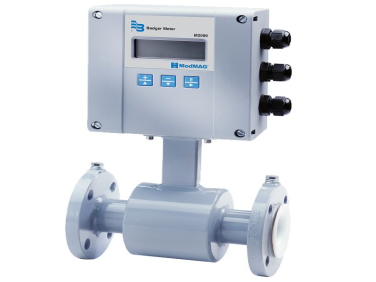

M2000 Electromagnetic Flow Meter
Badger Meter Industrial Tools & Accessories 04128-HW-BM-006

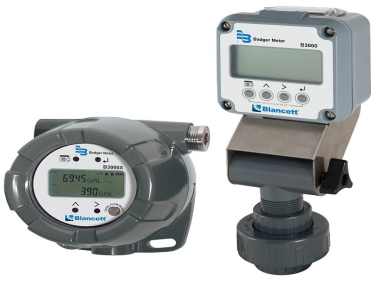

Badgermeter B3000 Series Flow Monitor
Badger Meter Industrial Tools & Accessories 04138-HW-BM-016

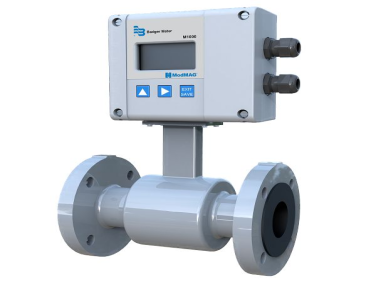

Badgermeter M1000 Electromagnetic Flow Meter
Badger Meter Industrial Tools & Accessories 04133-HW-BM-011

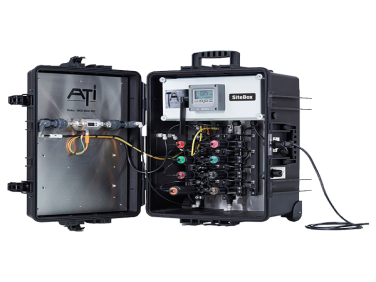

SiteBox Portable Water Quality Monitor
Badger Meter Industrial Tools & Accessories 04129-HW-BM-007

FloClean Sanitary Turbine Flow Meter
Badger Meter Industrial Tools & Accessories 0718-HW-BLA-003

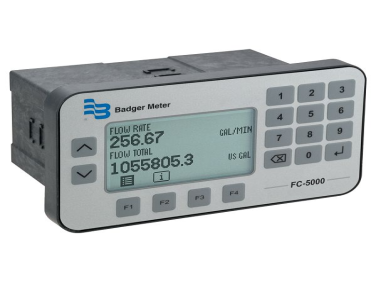

Badger Cox FC-5000 Flow Computer
Badger Meter Industrial Tools & Accessories 04145-HW-BM-025

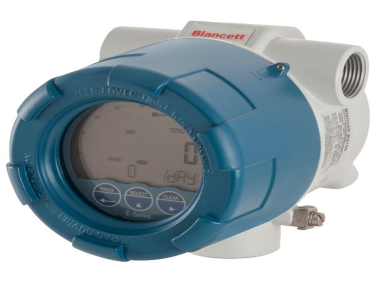

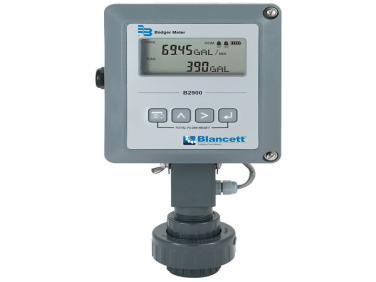

Badgermeter B2900 Series Flow Monitor
