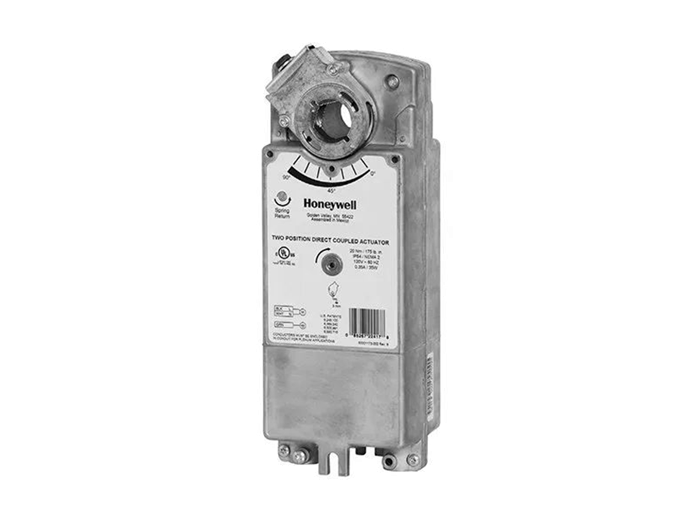

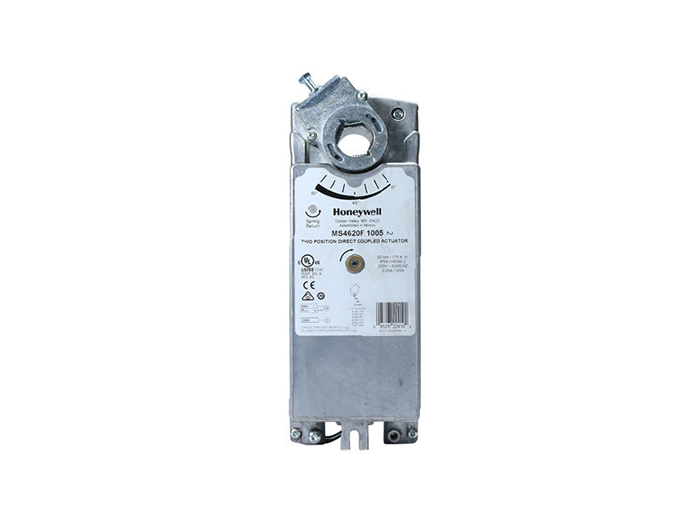

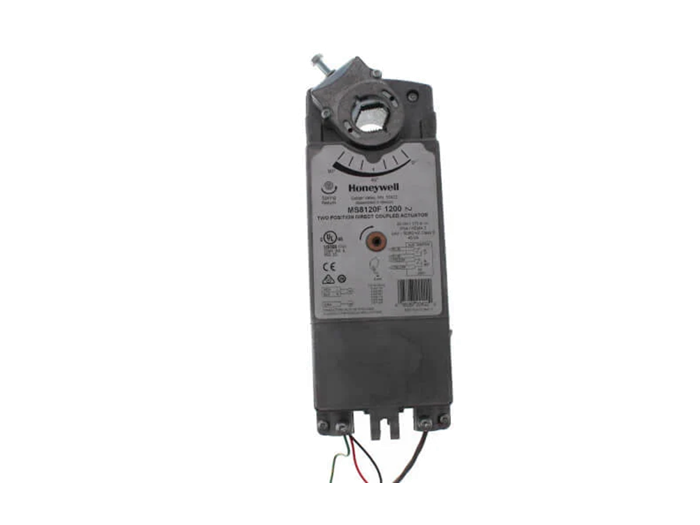

Honeywell MSxx03F Diamond Series 27 Lb-In. Fire And Smoke Damper Actuators

  • NG # 00970-HW-HNWEL-090

Designed to meet both UL-555 and UL-555S safety requirements at 250⁰F for fire and smoke applications.

Manufactured By :
Honeywell
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Diamond Fire & Smoke actuators are designed to meet both UL-555 and UL-555S safety requirements at 250⁰F for fire and smoke applications. Diamond Fire and smoke actuators are not designed for HVAC applications and HVAC actuators are not designed for fire and smoke applications. Diamond Fire and smoke actuators are fast acting and have a faster spring return and close-off than HVAC actuators helping to prevent the spread of fire and smoke.

Specification

Specification


  • 27 lb-in (3 Nm) torque, 24Vdc and 100/250 Vac supply voltage with low energy consumption 6 (VA) driving and 3 (Vdc) or 5 (Vac) holding.
  • With and without auxiliary switches (2 x SPST, fixed at 10⁰ and 80⁰, 125Vac, 1A resistive load)
  • Self-Centering Shaft Adapter or U-bolts
  • 360⁰ swivel NPT or clip-in conduit connectors
  • Drive time <45s, Spring return time <25s
  • Stroke 95⁰ +/-3⁰ mechanically limited
  • Temperature: -40° to 150°F (-40° to 65°C)
  • Humidity: 5% to 95% R.H. non-condensing
