NG # 00100-HW-NEO-001
MF # RGS-8805GC

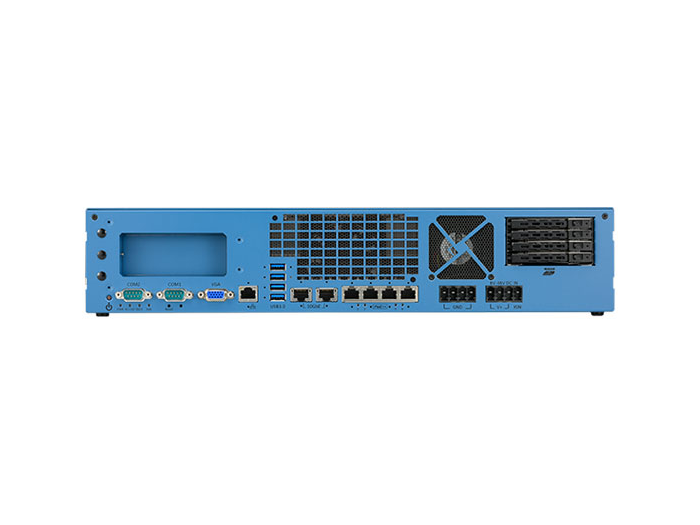

Imagine an HPC server unleashed from an air-conditioned data center room, roaming freely in the field! RGS-8805GC is just that, a rugged HPC server powered by the AMD EPYC™ 7003 series “MILAN” processor with up to 64-core/ 128-thread unparalleled computing power and 512GB memory capacity. Utilizing a unique partitioned enclosure design, it provides a highly effective airflow for CPU and other components to guarantee a reliable -25°C to 60°C operation for field deployment.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteIn terms of I/O connectivity, RGS-8805GC has two 10G Ethernet ports for high-speed data transmission that are backward compatible with 5GBASE-T and 2.5GBASE-T to work with NBASE-T industrial cameras; it has another four Gigabit PoE+ and four USB 3.1 Gen1 ports for connecting additional devices; and four easy-swappable 2.5” HDD trays for data storage. If that’s not enough, RGS-8805 provides two x16 PCIe slots for installing additional I/O cards such as frame grabber or GMSL image capture cards. Not to mention that RGS-8805GC is one of few HPC servers that accept wide-range DC input, helping it to adapt to versatile deployment environments. RGS-8805GC addresses the challenge of deploying a CPU/ GPU server to the field, where installation space, operating temperature, and power supply are some of the most commonly faced issues. A rugged HPC system that can be installed outside of an air-conditioned environment and capable of operating in harsh environments opens the door to new AI-assisted edge computing for more advanced telecom infrastructure, factory automation, ADAS, and V2X applications.
Specification
| MANUFACTURER | Neousys |
| PROCESSOR | AMD EPYC 7003 Series |
| GRAPHICS | Integrated ASPEED AST2500 BMC |
| MEMORY | up to 512GB DDR4-3200 RDIMM |
| POE | available on 4x GbE ports PoE+ PSE |
| VIDEO PORT | 1x VGA cia ASPEED AST 2500 BMC |
| PCI EXPRESS | 1x PCIe x16 Lane Gen 4 (for RTX GPU) 2x PCIe 116 slots @ Gen4, 8-lanes |
| M.2 | 2280 M key for NVMe |
| MINI PCI-E | 2 Full size with SIM support |
| 2.5" DRIVE | 4x Hot Swap Drawers |
| DC INPUT | 2x 24 pin 8-48V DC with ignition control |
| POWER ADAPTER | 600W AC/DC |
| POWER INPUT VOLTAGE | 8-48V DC |
| POWER TYPE | DC |
| DIMENSION | 444.4 x 350 x 88.1mm |
| WEIGHT | 19lbs |
| OPERATING TEMPERATURE | see manual |
| STORAGE TEMPERATURE | -40-85C |
| CPU FAMILY | AMD |
| VIDEO OUTPUT | VGA |
| POE PORTS | 4 |
| LAN PORTS | 5-8 |
| SERIAL PORTS | 1-2 |
| USB 3.1 | 1-4 |
| OPERATING SYSTEM | Windows 10, Linux |
| EFFECTIVE MEMORY SPEED | 3200 MHz |
| NATIVE STORAGE TYPE | 2.5" SSD, M.2 NVMe SSD, Hot Swap Capable |
| ON/IGNITION | Built In Ignition Control |
