NG # 00400-HW-GROW-039

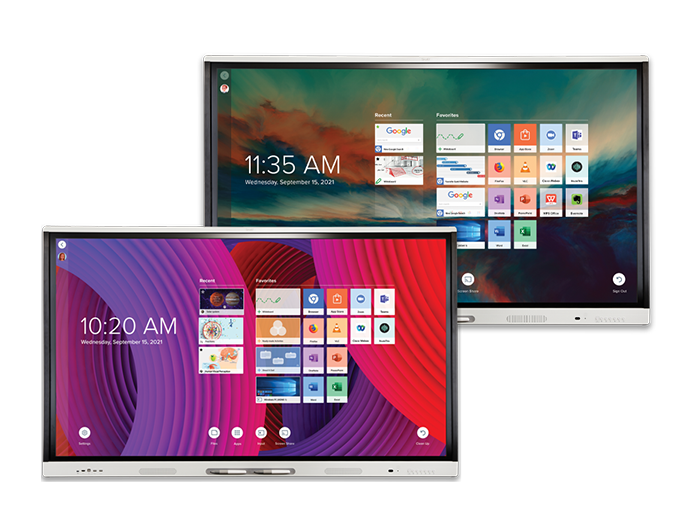

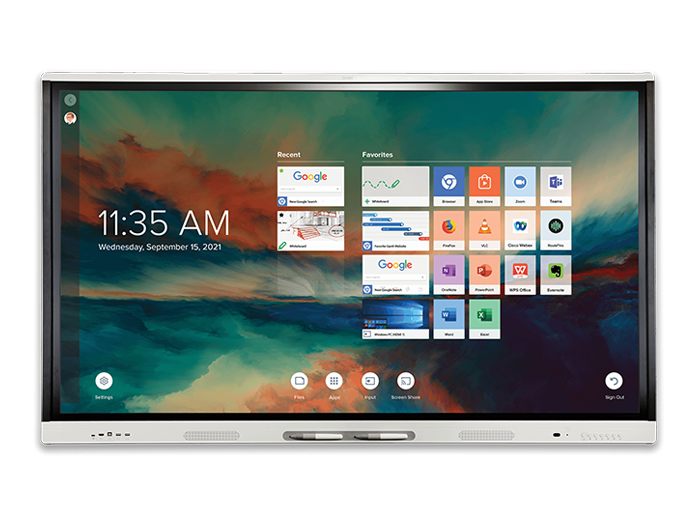

MART Board MX (V3) series with iQ SBID-MX286-V3 - 86" Diagonal Class LED-backlit LCD display - interactive - with built-in interactive whiteboard, PC and touchscreen (multi touch) - 4K UHD (2160p) 3840 x 2160 - white.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteBuilt-in activities and teaching tools make it easy for teachers to add interactivity and engagement on the fly – even if they’ve never used a SMART Board®.
Empower teams to interact and collaborate from any location, anytime, with a high-performance display designed to be budget-friendly and to foster productivity. The SMART Board MX Pro series has all the interactive tools teams need to collaborate at a great value. Designed and built to last and provide ROI for years to come
| General | |
|---|---|
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption Operational | 120 Watt |
| Diagonal Class | 65" |
| Commercial Use | Yes - interactive |
| Combined With | Built-in interactive whiteboard, PC and touchscreen (multi touch) |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Ambient light sensor (ALS), Infrared (IR) |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| PC Interface | VGA (HD-15), USB, USB-C |
| Width | 151.4 cm |
| Depth | 9.4 cm |
| Height | 92.9 cm |
| Weight | 40 kg |
| Enclosure Colour | White |
| Display | |
|---|---|
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight |
| Coating | Anti-glare, heat-tempered glass |
| Brightness | 400 cd/m² |
| Viewing Angle | 178 degrees |
| Touchpoints Qty | 20 |
| Response Time | 8 ms |
| Display Menu Language | Danish, Hungarian, Czech, Slovenian, Slovak, Chinese (traditional), Chinese (simplified), Vietnamese, Ukrainian, English, German, French, Italian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Greek, Latvian, Lithuanian, Estonian, Romanian, Japanese, Korean, Nordic, Welsh |
| Backlight Life | 50,000 hour(s) |
| Commercial Features | Open Pluggable Standard (OPS) support |
| Features | Object Awareness, HyPr Touch (Hybrid Precision Touch) technology, Over-the-Air Update (OTA), OPS Slot, Silktouch, simultaneous tool differentiation |
| Stands & Mounts | |
|---|---|
| Flat Panel Mount Interface | 600 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
|---|---|
| USB Port | Yes |
| USB Ports Qty | 10 |
| Configuration | 6 GB - 32 GB |
| Operating System | Android OS 9.0 |
| Remote Control | |
|---|---|
| Type | Remote control |
| Battery Form Factor | AAA type |
| Battery Included Qty | 2 |
| Battery Required Qty | 2 |
| Audio System | |
|---|---|
| Speaker System | 2 speakers |
| Output Power / Total | 30 Watt |
| Speakers | 2 x main channel speaker - 15 Watt |
| Network & Internet Multimedia | |
|---|---|
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LAN Protocol | Gigabit Ethernet |
| Wi-Fi Protocol | 802.11b, 802.11g, 802.11n, 802.11a, 802.11ac |
| Bluetooth Version | Bluetooth 5.0 |
| Encryption | WPA2, WPA2-PSK (AES), WPA, WEP |
| Connections | |
|---|---|
| Connector Type | HDMI input - front ¦ 2 x HDMI input - rear ¦ VGA input - rear ¦ Headphones - rear ¦ RS-232 input - rear ¦ USB-C with 65W Power Delivery - rear ¦ 2 x LAN - rear ¦ USB-C with 15W Power Delivery - front ¦ USB 2.0 - rear ¦ 2 x USB 3.0 - front ¦ USB 3.0 - rear ¦ USB 3.0 - front ¦ 3 x USB 3.0 - rear ¦ Audio line-out - rear ¦ Digital audio output (optical) - rear ¦ RS-232 output - rear |
| Miscellaneous | |
|---|---|
| Included Accessories | Wall mounting kit, 2 touch pens, SMART Notebook software, magnetic pen holder, SMART Ink, SMART Product Drivers, SMART Remote Management, iQ built-in Android experience, 3 x Wi-Fi aerials |
| Cables Included | USB cable - 5 m ¦ Power cable |
| Compliant Standards | UL, CB, FCC, RoHS, WEEE, REACH, LVD, RCM, HDCP 2.2, HDCP 1.4, ISED, RED, IEEE 802.1x, POP, UKCA, EMCD |
| Environmental Standards | |
|---|---|
| ENERGY STAR Certified | Yes |
| Power | |
|---|---|
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.4 Watt |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty - 3 years |
| Regional Warranty Exceptions | United Kingdom - 5 years |
| Dimensions & Weight (Shipping) | |
|---|---|
| Width (Shipping) | 165.5 cm |
| Depth (Shipping) | 20.5 cm |
| Height (Shipping) | 116 cm |
| Weight (Shipping) | 60 kg |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 5 - 80% (non-condensing) |
