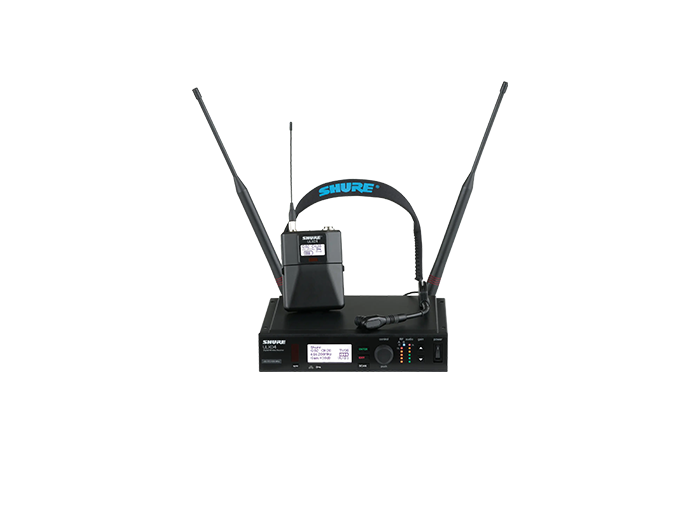

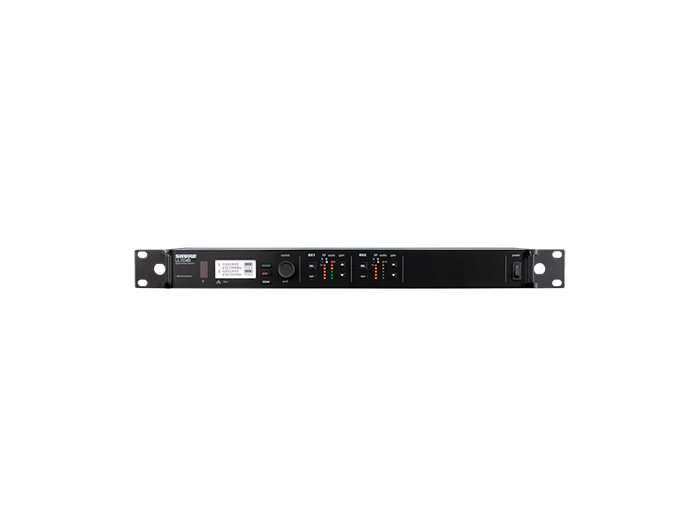

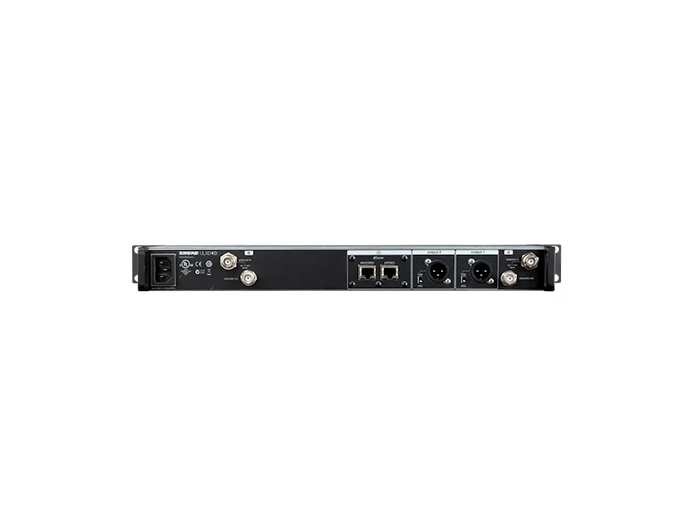

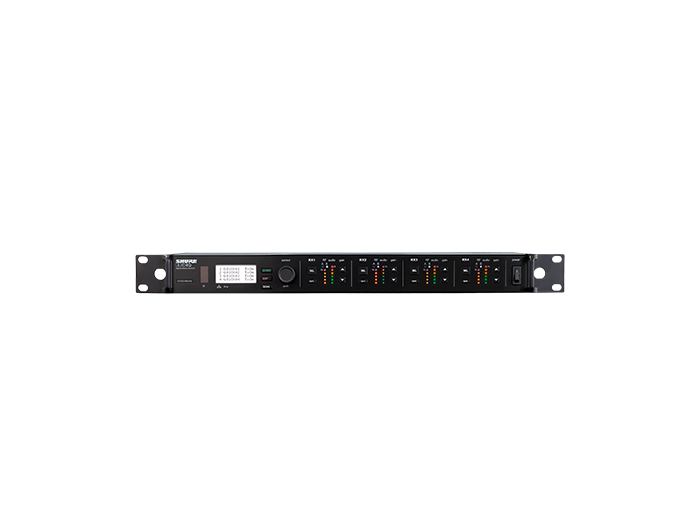

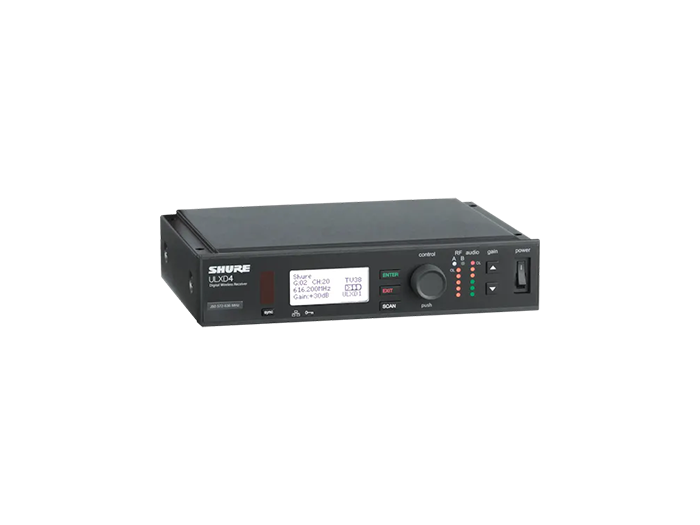

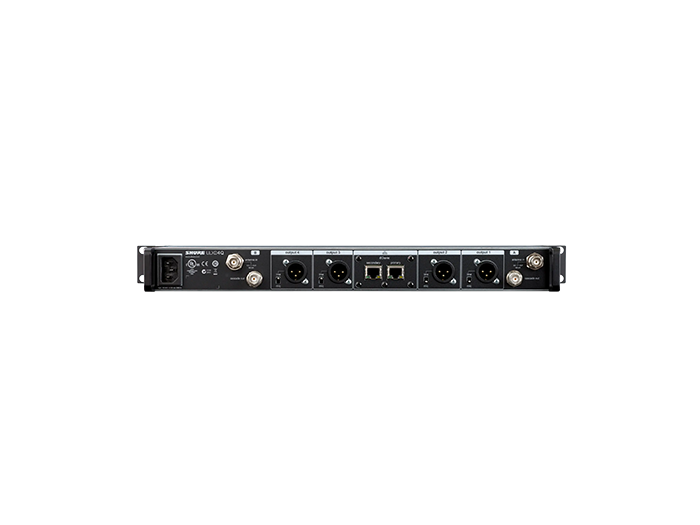

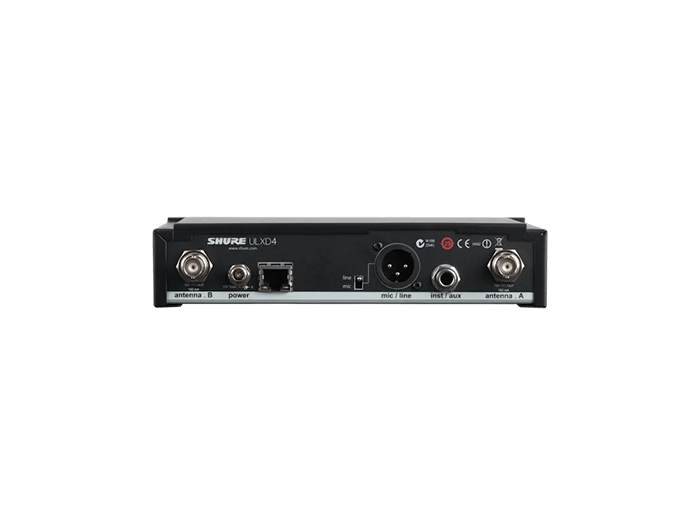

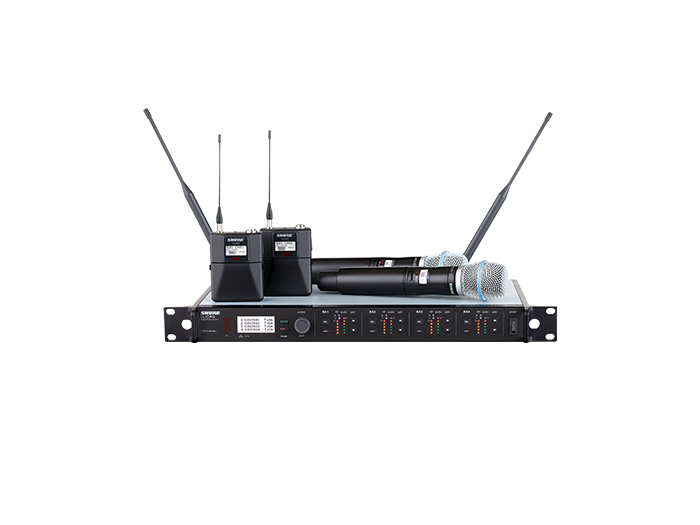

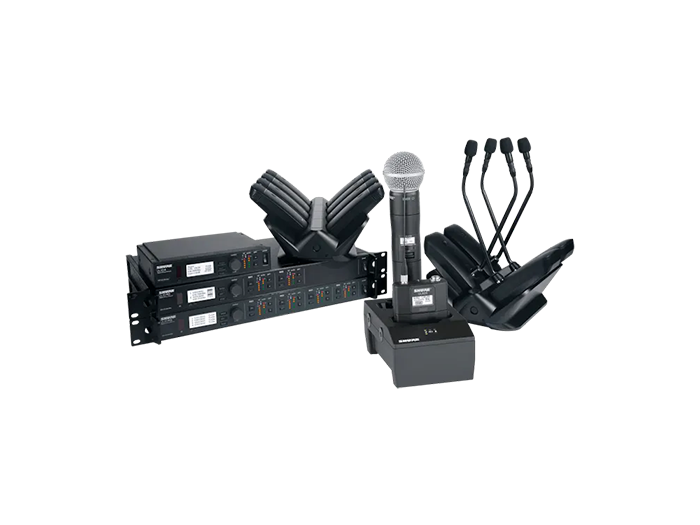

Shure ULX-D® Digital Wireless Systems

  • NG # 01342-HW-shrue-006

A campus-wide solution, ULX-D® Digital Wireless is secure, scalable, and durable. From managing diverse sound sources to protecting RF from smartphones

Manufactured By :
Shure
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Digital wireless system offers a mix of 24-bit digital audio quality and scalability to meet the demands of installed applications. Features include Wireless Workbench 6, optimized frequency scanning, and AES 256 encryption for security.

Specification

Specification

  • Extended 20 Hz – 20 KHz frequency range with totally flat response
  • 24 bit / 48 kHz digital audio
  • Over 120 dB dynamic range, 130 dB (typical) using Dante™ digital networked audio
  • Shure Gain Ranging optimizes dynamic range for any level of input source
  • Built-in limiter circuitry prevents digital audio clipping
  • Compatible with Wireless Workbench® 6 software, for advanced frequency coordination, monitoring, and control
  • Wireless channel efficiency – 22 active transmitters per 8 MHz TV channel. In High Density mode, up to 63 active transmitters per 8 MHz TV channel, with no audio quality degradation
  • Optimised scanning automatically finds, prioritises, and selects the cleanest available frequencies
  • Interference detection provides instant alerts
  • AES-256 bit encryption offers unbreachable privacy, and eliminates stray RF interference by only allowing the encrypted signal through to the receiver
  • Advanced lithium ion battery technology provides up to 9 hours of continuous use, with detailed tracking of battery health status, and no memory effect
  • Transmitters and receivers display remaining battery life accurate to within 15 minutes
  • Ethernet networking for streamlined setup across multiple receivers
  • Removable half wave antennas
  • Up to 72 MHz overall tuning range (region dependent)
  • Up to 60 dB of adjustable system gain
  • Rugged metal housing on both transmitters and receiver
  • Selectable 1, 10, and 20 mW transmitter RF output power
  • Transmitters offer AA alkaline backwards compatibility
